Dialup Settings

Categories

1. Getting to your Dialup Settings
2. General Dialup Properties
3. Dialup Options
4. Dialup Security Settings
5. Networking Settings
   1. TCP/IP Settings
   2. General Settings
   3. DNS Settings
   4. WINS Settings
6. Advanced Options

Screenshots

1. Getting to your Dialup Settings

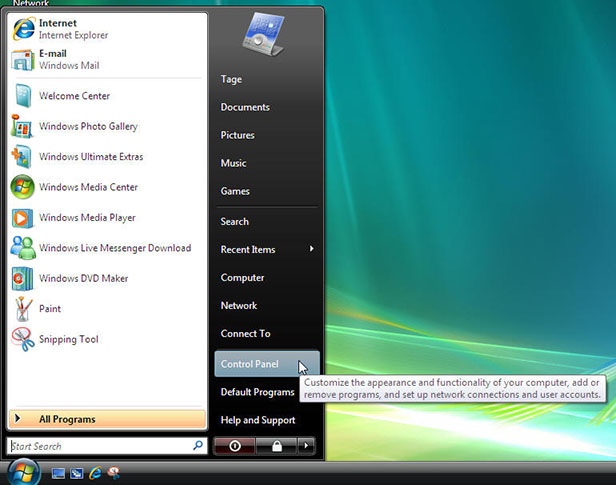

   1. Open the Start Menu and select "Control Panel."

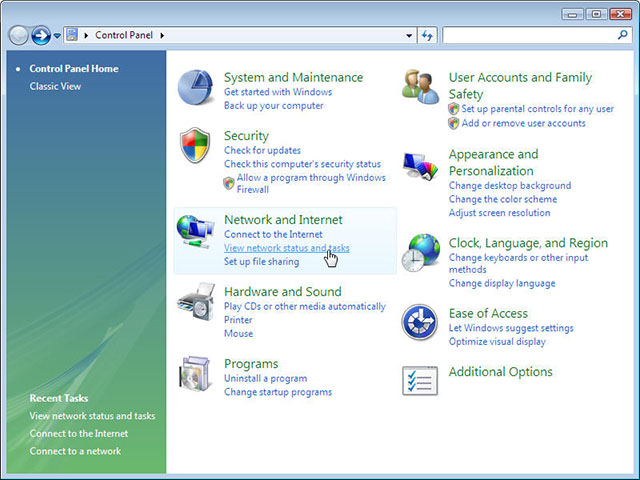

   2. Select the option "View network status and tasks."

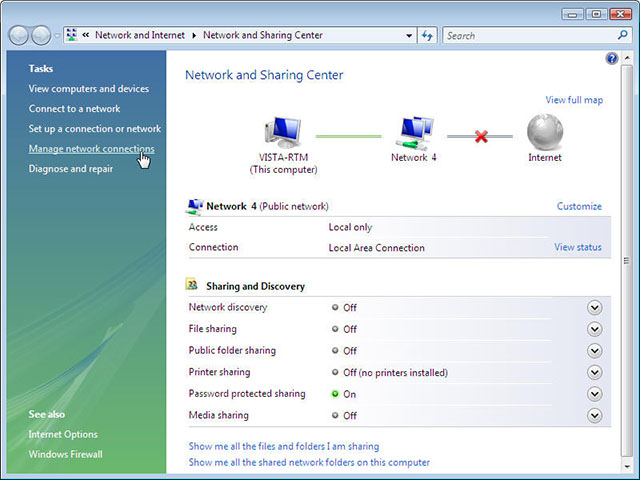

   3. Select "Manage network connections."

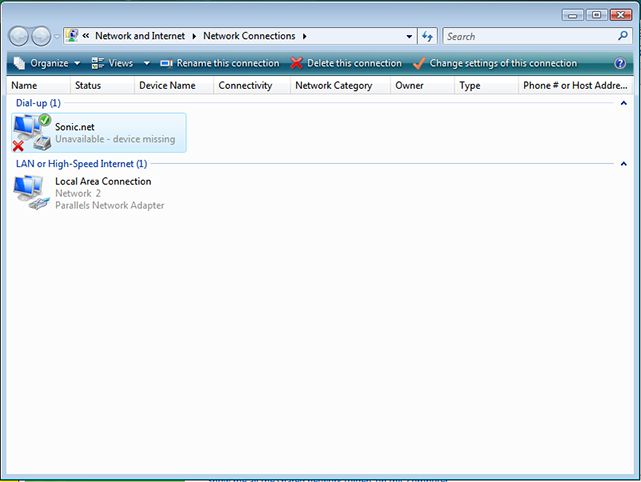

   4. Open your Sonic.net connection.

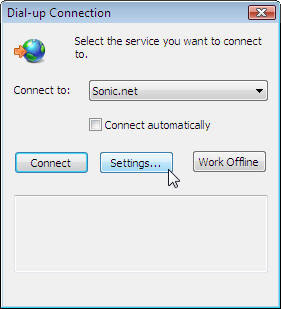

   5. To review or change your dialup settings, click the button labeled "Properties."

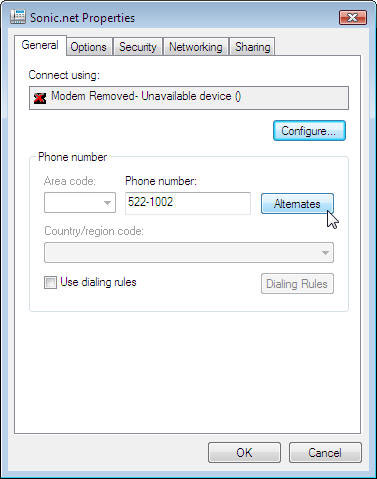

2. General Dialup Properties

   Under the General tab you can specify the number you computer dials to connect to Sonic.net. Sonic.net recommends configuring alternate dialup numbers. Click the button labeled "Alternates" to configure this..

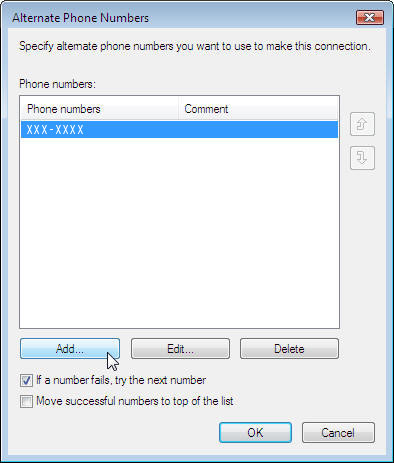

   • Alternate Numbers Listing

     This screen will show you a listing of all dialup numbers your system knows how to connect to, in the order in which they will be used. In the event that the first number fails to connect, the second number will be dialed instead.

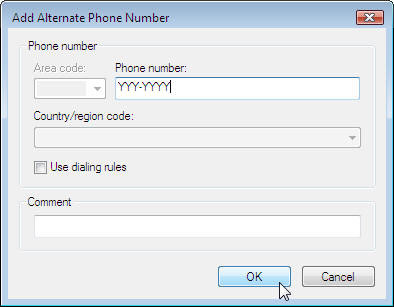

     Click "add" to place another number on this list. There are multiple dialup points of presence available in most Sonic.net coverage areas. You can find a listing of access numbers in your area using the POP Finder

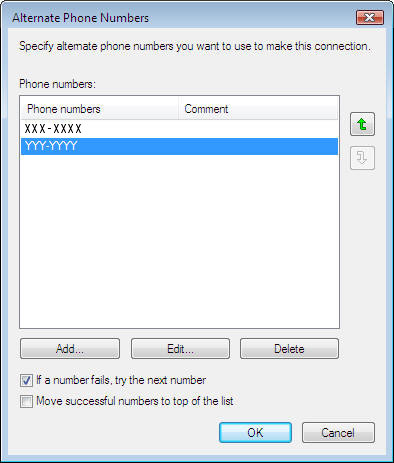

     Click the button labeled "OK" and the new phone number will be added to your list.



     Click the button labeled "OK" to return to your General Dialup Properties.

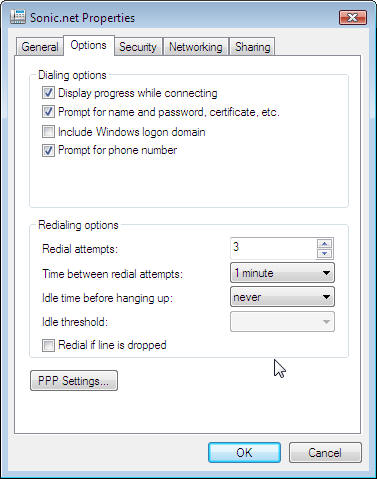

3. Dialup Options

   Under the Options tab, you can make primarily cosmetic changes to your sytem's behavior during dialup. Set the redial options as you please, as you should be able to connect to Sonic.net on your first attempt.

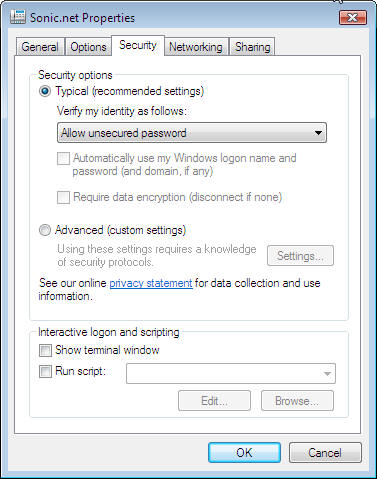

4. Dialup Security Settings

   Under the Security tab, you can change how Windows handles your password and login scripting. Select "Typical (reccomended settings) and "Allow unsecured password." Leave all other checkboxes unmarked.



5. Networking Properties

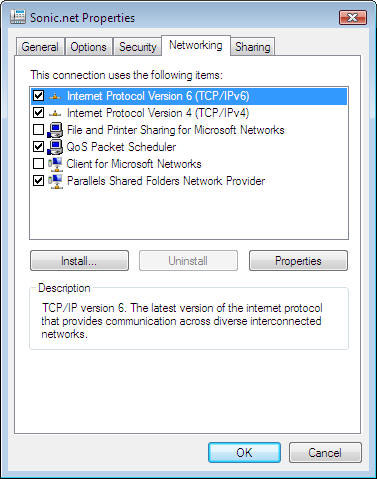

   Under the Networking tab, you should have "PPP: Windows 95/98/NT4/2000, Internet" selected as the type of dialup server you are calling. Select "Internet Protocol (TCP/IP) and click the button labeled "Properties" for more network settings.



   1. TCP/IP Settings

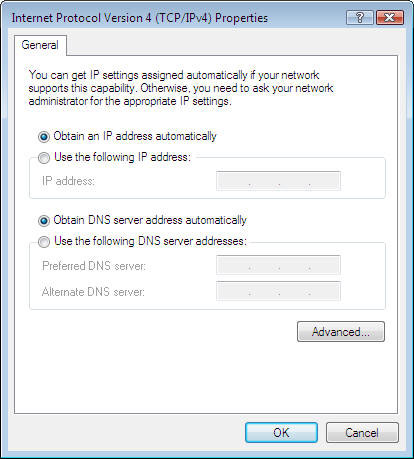

      In the Internet Protocol Properties window, you should make certain that the IP address is being assigned automatically. You may wish to specify your DNS server addresses to use 208.201.224.11 and 208.201.224.33, but this is entirely optional. Click the button labeled "Advanced..." for more information.



   2. IP Settings

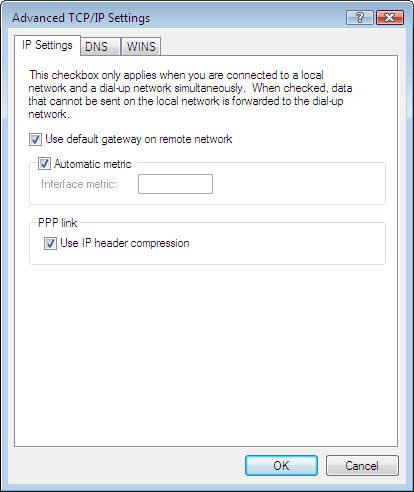

      Under the IP Settings tab, select "Use default gateway on remote network," "Automatic metric" and "Use IP header compression."

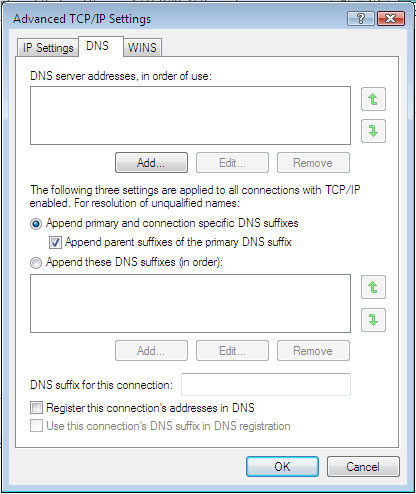

   3. DNS Settings

      The default settings for the DNS settings should function in most cases, but you may wish to specify you DNS information.



      The DNS server addresses are 208.201.224.11 and 208.201.224.33. You can optionally append the DNS suffix "sonic.net."



   4. WINS Settings

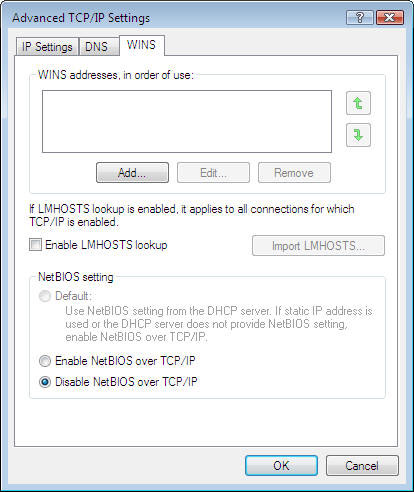

      WINS resolution is unnecessary on a Sonic.net dialup connection.
