Soundscape Product
Russound Custom Installation Products

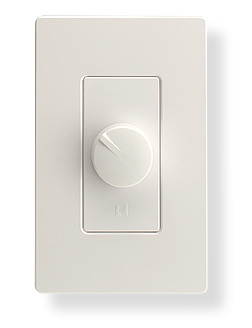

LPTx-2D
UltraMatch™ Volume Control with Decora® insert and Cover Plate
LPTx-2 UltraMatch™ Volume Control with Standard Cover Plate
The LPTx-2 is a wall-mounted, Standard style, speaker-level, UltraMatch™ volume
control. It connects between the speaker outputs of an amplifier or receiver
and a pair of speakers. The 1x setting allows the volume control to be used
as a standard non-impedance matching control. The 2x, 4x, and 8x settings allow
it to be used as an UltraMatch™ control. The UltraMatch™ volume control provides
a method of matching the minimum output impedance of an amplifier or receiver,
in addition to attenuating the volume. This eliminates the need for a speaker
selector or other impedance matching equipment. The volume is adjusted by adjusting
the amplifier signal output of the volume control to the speakers. All Russound
volume controls are manufactured using a high quality autoformer design which
provides long life, excellent frequency response, no heat build-up, and maximum
power transfer from the amplifier to the speakers.
All Russound volume controls conform to UL Standard 1492 First Addition, and
for Canada, certified to CSA Standard 22.2 No. 1-M94. This certification assures
that Russound volume controls are designed and tested for safety.
Features:
- Standard wall plate
- Selectable autoformer-based impedance matching (up to 8x)
- Impedance-matching or Non Impedance-matching
- Configurable Removable input/output connectors
- Isolated left and right channel grounds
- 12 Step Attenuation including "OFF"
- Available in White, Bone, Almond, Brown, and Black
