Home Theater Master® MX-800RFS
Features:
No More Pointing - RF Capabilites Radio Frequency (RF) operation provides 50' - 100' range though walls and doors, indoors or outdoors. Self-adhesive "flashers" affix to the infrared sensors on the front panels of your components. The flashers relay commands to components out of sight of the MRF-200's front blaster. The flashers plug in to the MRF-200's rear flasher line outputs via their 10 foot cables. Six flashers are included with each MRF-200.
RF Addressing Offers Up To 16 Equipment Locations Each MX-800 can be programmed to operate equipment placed throughout the house, by installing an MRF-200 base station at each location. In operation it's simple: when you select a device located in the home theater, the MX-800 talks to the MRF-200 in the home theater. This makes possible a dream come true! A macro may be programmed to turn off all of the TVs in the entire house with one touch. Simply install an additional at each TV location.
RF Routing Allows For Control Over An Array Of Identical Components The MRF-200 enables your installation to control up to six identical TVs or other identical components (VCRs, CD players, etc.) by routing your commands only to the TV you select on your MX-800. The other identical TVs will not receive commands.
Controls Up To 20 Components The MX-800 controls up to 20 components. Each of the 20 components can be programmed with up to 4 pages of LCD screens.
Easy To Program A custom installer can use the MX-800 system software to quickly design a remote control program to meet their exact needs in minutes. The programming package also offers the Programming Wizard to lead the first time programmer step by step through the customization process.
Windows Based PC Software The MX Editor software contains over 1,500 "code sets" of Brands/Models, including hard to find and specific discrete codes that allow for precise control of all system components. MX Editor also has the ability to learn new commands and Live Update the IR database over the internet, guaranteeing compatibility with any component you may add to your system in the future. MX Editor can be used on a Mac if the user has a Windows 98, ME, 2000 or XP emulator.
Extensive Macro Programming The powerful memory of the MX-800 offers up to 912 potential macro buttons. Each of these macros can play back recorded sequences of commands that completely automate a complex system with one touch. A macro can record and play back up to 190 steps with time delays between steps when desired. For example: a single touch to the ON button could turn on the TV, the surround sound system, and the satellite receiver, then set the TV to the correct video input, the surround system to the right audio settings, and finish by selecting your favorite satellite tv channel.
50 Favorite Channels The MX-800 allows the user to program up to 50 favorite channels and the LCD screen will display the favorite channels that are programmed. This allows the users to access their favorite channel with one simple button press.
One Hand Ergonomics The optimized layout of hard buttons enables you to naturally reach both 5-way thumbpad to navigate on-screen menus and the critical Transport, Channel and Volume buttons.
EL Back Lighting The bright backlight using the latest EL technology enables a customer to use both remote control units in a low light environment.
Memory Back-Up The MX-800 system features a smart memory back-up system that will retain the programmed memory for up to ten years, even with dead batteries.
Centrally Located Joystick The centrally located Joystick helps the user navigate through menus and guides with ease, a very convenient feature for DVD players, Satellite and Cable TV and Personal Video Recorders.
Gemstone™ Buttons The GemStone buttons have a look and feel that instantly appeals to the customer. Unlike standard rubber buttons, these GemStone buttons add a very distinguished look to the remote controls that will compliment any high-end system.
MX-800 and MRF-200 also available separately
$349.95 (Including Free Freight)*

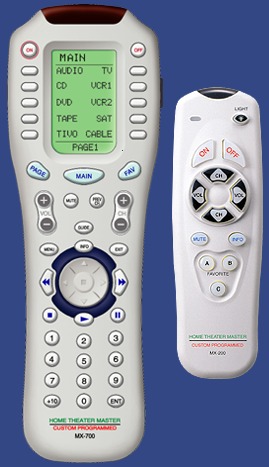

Home Theater Master® MX-700
Features:
LCD touch screen design with joystick control
Controls up to 12 components
Preprogrammed with over 1,000 A/V codes
Learns up to 780 functions via your infrared remotes
PC Interface for editing/downloading new codes and programs
Extensive Macro Control and Punch Through operations
50 Pages of customizable LCD touch screens
Backlit LCD screens and buttons

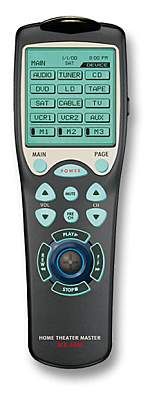

Home Theater Master® MX-1000 Features:
Customizable LCD Touch screen Remote
Control with Joystick Operation
The last remote control that you will ever need to purchase!
Capable of operating up to 12 audio and/or video components, this preprogrammed and learning remote control is designed with total customization in mind. Many of the commands are accessed directly from the device buttons located on the brightly lit LCD touch screen. The MX-1000 features 50 customizable LCD touch screen pages, of which both the text, and size/shape of the buttons can be modified according to individual preference.
The MX-1000 remote control can't become obsolete - as technology advances, so does the remote control!
Included, as a standard accessory with the remote control is an RS-232C PC interlink cable. This interface connection makes it possible to completely program the set-up, operation and design of the MX-1000 directly from your PC, as well as upload data to your PC for program archiving. In addition, we periodically update the MX-1000's Operating Program (software), which can be downloaded from our website, to your PC and into the remote control. This connection makes it possible to download new audio and video component codes as they become available from their respective manufacturers.
Basic set-up of the remote can be fast and easy
The remote boasts a built-in preprogrammed database of over 1,000 audio and video component codes, and is also fully capable of learning your home theater system's audio/video components remote control codes (up to 780 functions). For those households that require more than one remote control, the MX-1000 can easily be cloned via infrared from another programmed MX-1000. It's that simple!
Ease-of-use
The MX-1000 is ergonomically designed and weight balanced to fit comfortably in one hand. The brightly backlit LCD touch screen and buttons make navigation within a darkened home theater environment a breeze. To further enhance the navigation of the remote control, we have incorporated a multi-directional joystick.
Additional creature comforts
The MX-1000 Punch Through feature enables control of one component while the remote is actually in another component mode. For example, you can adjust the volume of the amplifier while actually in the DVD mode, eliminating the need to toggle back-and-forth from the DVD screen to the amplifier screen.
The macro feature allows the remote control to be programmed to send out multiple commands at once. The unit has 3 macro buttons that allow the unit to send out up to 28 commands each, 12 device buttons that send out 14 commands each, and 60 favorite channel buttons that send out up to 12 commands each. For example, the MX-1000 can be programmed to turn on all the components within the home theater system at just the touch of a button!
The MX-1000 also incorporates a memory back-up system designed to prevent memory loss for up to one year, should the batteries be removed.
MX-1000 Features/Specifications
Type: Preprogrammed and Learning LCD Touch screen with Joystick Operation
Display: LCD Touch screen with 50 customizable pages
Total of 4 display pages per each of the 12 devices (components)
Two LCD pages for device buttons
Up to 14 distinct buttons or commands per each screen (or page)
Commands Per Device: 64 touch screen commands per device
13 hard button commands and five joystick commands per device
Joystick Operation: Provides quick access to device options w/thumb
Preprogrammed: For over 1,000 audio and video components (devices)
Set-up is easy using three digit preprogrammed code numbers
Learning Capability: Learns up to 780 commands via infrared from device remote controls
Custom Adjustments: The LCD screen and buttons feature "EL" Backlighting Illumination - duration can be adjusted according to personal preference
The function beep sound, low-battery warning, set clock/date, and LCD contrast levels can all be adjusted
Macro Control: Sends out multiple commands at once
M1, M2, M3 keys send out 28 commands each
12 device buttons that send up to 14 commands each
60 favorite channel buttons send out 12 commands each
Punch Through Operation: Punch Through operations of any of the 12 devices from any of the 12 devices for Volume, Channel and Transport (Play, Stop, Fast Forward, and Rewind)
PC Interface: RS-232, 3 wire mini-plug (included) for connectivity with your PC to program the remote control and download update versions of the operating system
Memory: 4 MB non-volatile SRAM
Remote Capability: 12 devices (components) in total
Batteries: 4 AA alkaline (Duracells Included)
Power Saving: Configurable automatic shut-off
Dimensions: 8.9" x 2.9" x 1.5" (L x W x H)
Weight: (10.2 oz) (with batteries)
Warranty: 1 year parts & labor
Price: $289
50-100' Range through walls and cabinet doors, indoors and outdoors
Programs using internal IR command database or learning
LCD viewscreen design with joystick control
Controls up to 10 components
Preprogrammed with over 1,000 A/V codes
Learns up to 530 functions via your infrared remotes
Extensive Macro Control and Punch Through operations
26 Pages LCD screens with customized text
Backlit LCD screen and buttons
A truly unbelievable value!
This preprogrammed and learning remote control is designed to simplify your entertainment experience. The brightly backlit LCD viewscreen actually has 26 individual pages for operating up to 10 audio and/or video components. The component buttons are strategically placed around the LCD viewscreen and can be renamed, according to the actual components that your audio or video system may include.
Basic set-up of the remote can be fast and easy
The MX-500 boasts a built-in preprogrammed database of over 1,000 audio and video component codes, and is also fully capable of learning your home theater system's audio/video components remote control codes (up to 530 functions). For those households that require more than one remote control, the MX-500 can easily be cloned via infrared from another programmed MX-500. It's that simple!
Ease-of-use
The MX-500 is ergonomically designed and weight balanced to fit comfortably in one hand. The brightly backlit LCD viewscreen and buttons make navigation within a darkened home theater environment a breeze. To further enhance the navigation of the remote control, we have incorporated a multi-directional joystick.
Additional creature comforts
The MX-500 Punch Through feature enables control of one component while the remote is actually in another component mode. For example, you can adjust the volume of the amplifier while actually in the DVD mode, eliminating the need to toggle back-and-forth from the DVD screen to the amplifier screen.
The macro feature allows the remote control to be programmed to send out multiple commands at once. The unit has 3 dedicated macro buttons, a "Power" button and a "System Off" button that send out up to 20 commands each. 10 device buttons send out up to 15 commands each, and 50 favorite channel buttons send out up to 10 commands each. For example, the MX-500 can be programmed to turn on all the components within the home theater system at just the touch of a button!
The MX-500 also incorporates a memory back-up system designed to prevent memory loss for up to one year, should the batteries be removed.
MX-500 Features/Specifications:
Type: Preprogrammed and Learning LCD Viewscreen Remote with Joystick Operation
Display: LCD viewscreen with 26 individual pages
Commands Per Device: 53 commands per device
43 hard button commands
5 joystick commands per device
530 commands per device in total
Joystick Operation: Provides quick access to device options w/thumb
Preprogrammed: For over 1,000 audio and video components
Set-up is easy using three digit preprogrammed code numbers
Learning Capability: Learns up to 530 commands via infrared from device remote controls
Cloning: One MX-500 can be cloned (learn the commands) from another custom programmed MX-500 within minutes
Custom Adjustments: The LCD screen and buttons feature "EL" Backlighting Illumination - duration can be adjusted according to personal preference
LCD Contrast Levels can be adjusted according to personal preference
Macro Control: Sends out multiple commands at once
M1, M2, M3 keys send out 20 commands each
Power Button sends out 20 commands
System Off Button sends out 20 commands
10 device buttons send out 15 commands each
50 favorite channel buttons send out 10 commands each
Punch Through Operation: Punch Through operations of any of the 10 devices from any of the 10 devices for Volume, Channel and Transport (Play, Stop, Fast Forward, and Rewind)
LCD Screen Size: 1.4" x 2.1"
Remote Capability: 10 devices (components) in total
Batteries: 4 AAA alkaline (Duracells Included)
Dimensions: 9.1" x 3.0" x 1.3" (L x W x H)
Weight: (7.5 oz) (with batteries)
Warranty: 1 year parts & labor
Price: $189 (Including Free Freight)
Customizable LCD display
Controls up to 8 components
Preprogrammed with over 1,000 A/V codes
Learns up to 376 functions via your infrared remotes
Extensive Macro Control and Punch Through operations
Backlit LCD screen and buttons
Home Theater Master® SL-9000
Preprogrammed and Learning Remote Control with LCD Display
Affordable price and great performance!
This preprogrammed and learning remote control is designed to simplify your entertainment experience. The SL-9000 can operate 8 audio and/or video components. The LCD display provides instant device identification.
Basic set-up of the remote can be fast and easy
The SL-9000 boasts a built-in preprogrammed database of over 1,000 audio and video component codes, and is also fully capable of learning your home theater system's audio/video components remote control codes (up to 376 functions). It's that simple!
Ease-of-use
The backlit LCD display and buttons of the SL-9000 make navigation within a darkened home theater environment a breeze.
The SL-9000 Punch Through feature enables control of one component while the remote is actually in another component mode. For example, you can adjust the volume of the amplifier while actually in the DVD mode, eliminating the need to toggle back-and-forth from the DVD screen to the amplifier screen.
The macro feature allows the remote control to be programmed to send out multiple commands at once. The unit has 8 macro buttons, and a "Power" button that send out up to 14 commands each. The 8 component buttons can also send out power on command and audio input select command. For example, the SL-9000 can be programmed to turn on all the components within the home theater system at just the touch of a button!
The SL-9000 also incorporates a memory back-up system designed to prevent memory loss for up to one year, should the batteries be removed.
SL-9000 Features/Specifications
Remote Type: Preprogrammed and Learning Remote Control w/LCD Display
Display: LCD window displays device name
Preprogrammed: For over 1,000 audio and video components
Set-up is easy using three digit preprogrammed code numbers
Learning Capability: Learns up to 376 commands via infrared from device remote controls
Backlighting: The LCD screen and buttons feature "EL" Backlighting Illumination
Punch Through Operation: Punch Through operations of any of the 8 devices from any of the 8 devices for audio or TV volume, Satellite or Cable channel, VCR, or CD Transport
Macro Control: Sends out multiple commands at once
8 Macro buttons and a Power button send out 14 commands each
8 Device buttons send out power on command and audio input select command
LCD Window Size: .3" x 1.2"
Remote Capability: 8 devices (components) in total
Batteries: 4 AAA alkaline (Duracells Included)
Dimensions: 8.8" x 2.5" x 1.1" (L x W x H)
Weight: (6.5 oz) (with batteries)
Warranty: 1 year parts & labor
Customizable LCD display
Preprogrammed with over 1,000 A/V codes
Extensive Macro Control and Punch Through operations
Backlit LCD screen and buttons
Features:
Preprogrammed to operate most cable TV tuners
Controls up to 6 components
Volume Punch Through operation
VCR Punch Through operation
Macro Control and Punch Through operations
$79 (+ $6 Domestic Freight )
Features:
Preprogrammed to operate most cable TV tuners
Controls up to 6 components
Volume Punch Through operation
VCR Punch Through operation
Macro Control and Punch Through operations
