| Jan 12, 2002 Waveforms |

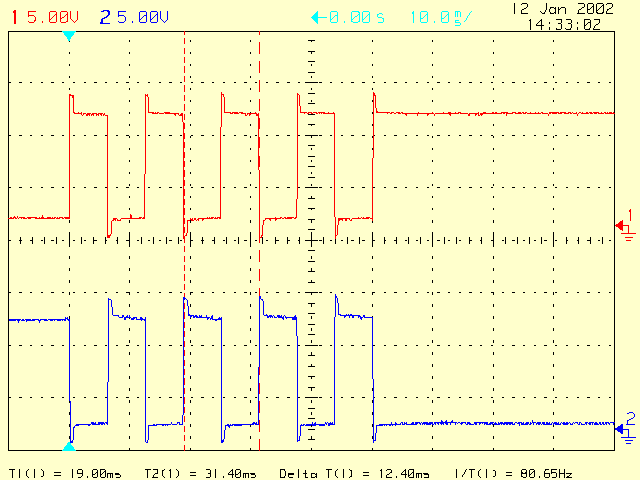

Blue coil pair (C/D) stepping out after a motor start.
| Chan#1 - (D) - Blue/White |
| Chan#2 - (C) - Blue/Black |
|
 |

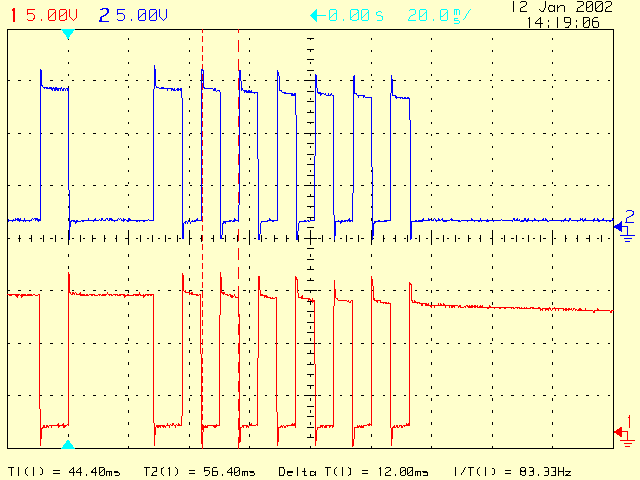

| Same as above but put the scope channel #1 on the top of the
plot. |
 |

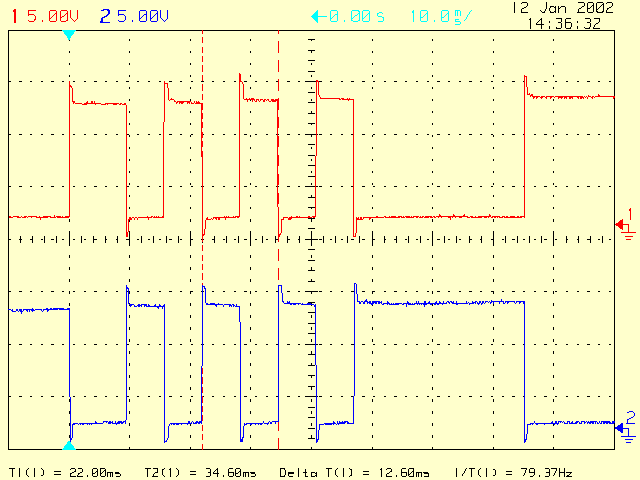

Green coil pair (A/B) stepping out after a motor start.
| Chan#1 - (B) - Green/White |
| Chan#2 - (A) - Green/Black |
|
 |

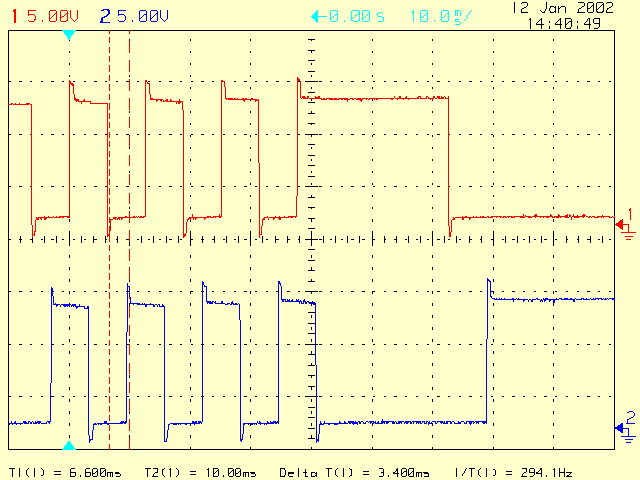

Looking at one side of each coil to check the phase and timing.
Just after a motor start with the IAC stepping out.
| Chan#1 - (C) - Blue/Black |
| Chan#2 - (A) - Green/Black |
|
 |

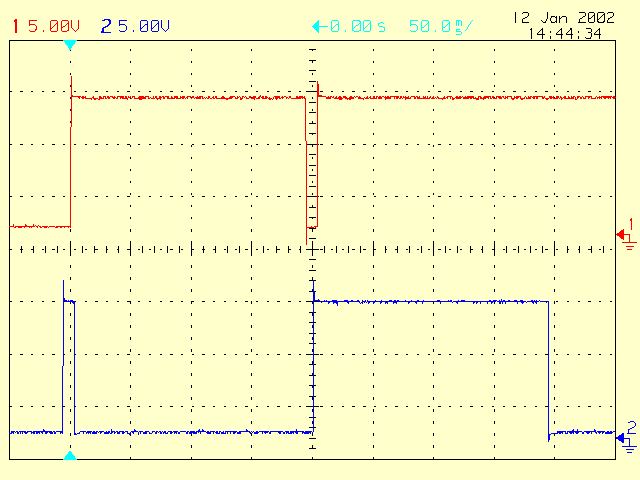

| Same scope setup as above (looking at both coils). These
single steps occurred a little after start up. |
 |

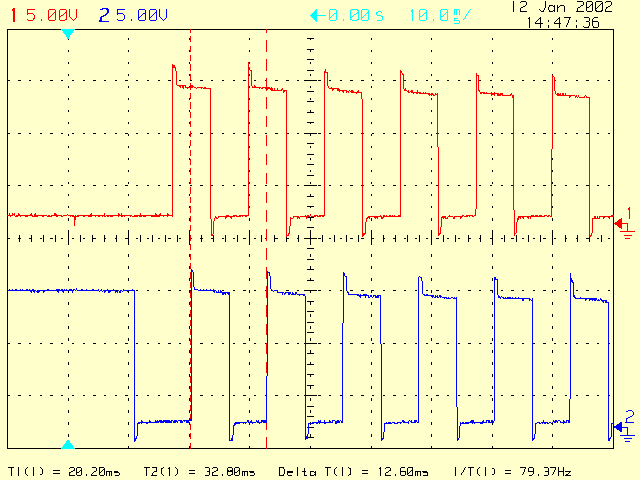

| Same setup (both coils) but this is the retraction that occurred
after the key was turned off. |
 |
| Operation On the Bench, 01/17/2002 |

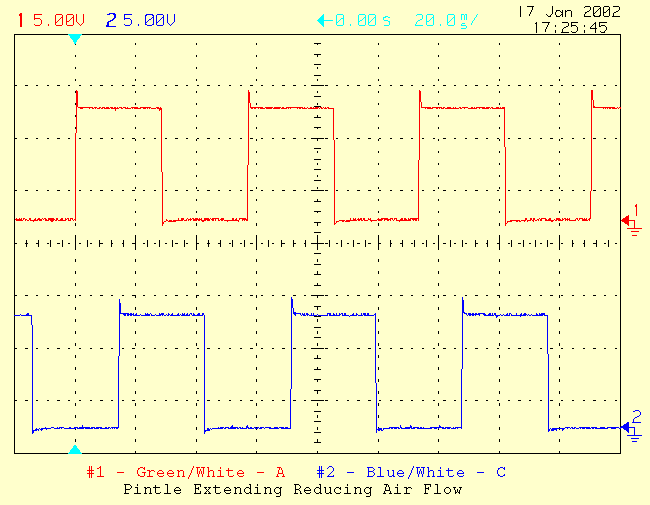

| Looking at the A and C pins on the motor connector. This is the
phase relationship to extend the pintle. |
|

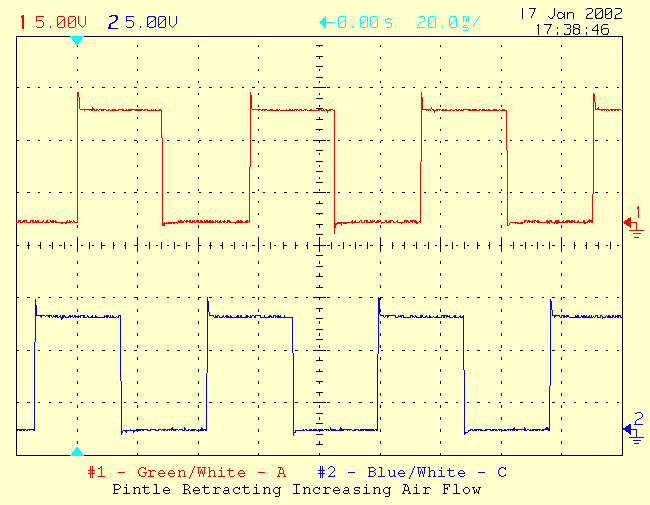

| Still looking at the same pins. The pintle is retracting. |
 |
