COOL Sensor Input - Block C

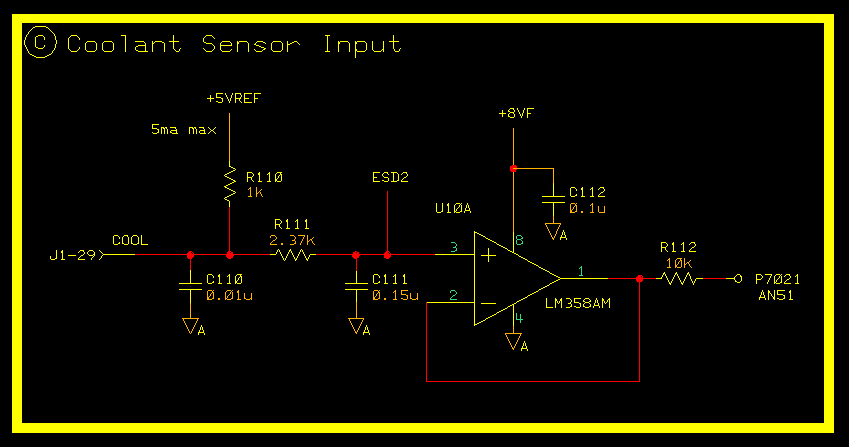

        This circuit is designed to interface directly to a GM/Delphi thermistor sensor.  Its input is filtered and ESD protected.  Open fault failure mode results in a maximum ADC reading.  The coolant sensor has the same resistance verses temperature characteristics as the MAT unit does.  Refer to Block B for a discussion of expected ADC response.
