TPS Sensor Input - Block E

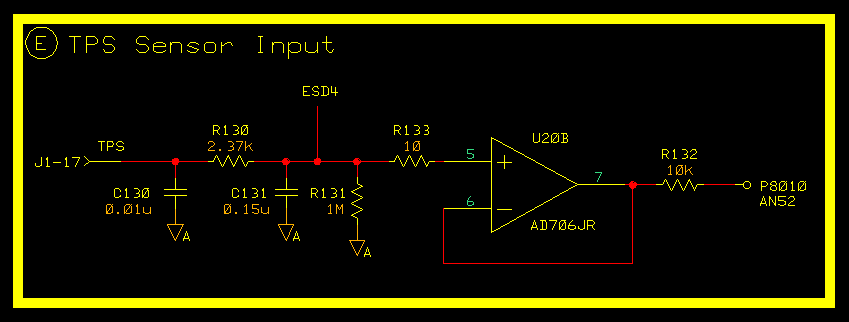

        This circuit is designed to interface with a resistive divider TPS sensor.  0 to +5 volts is the expected input range.  Its input is filter and ESD protected.  Open fault failure will result in a zero ADC reading.
