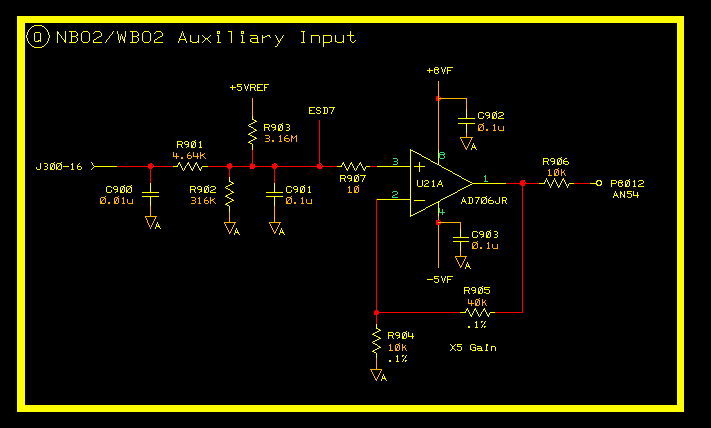

Auxiliary NBO2/WBO2 Input - Block Q


        This circuit is designed to serve as an auxiliary O2 sensor input interface.  It can either be used with a standard NBO2 sensor or as a WBO2 input.  Have plans to someday build an Wide Band sensor interface and this port has enough resistors to be able to reconfigure it to anything needed.
