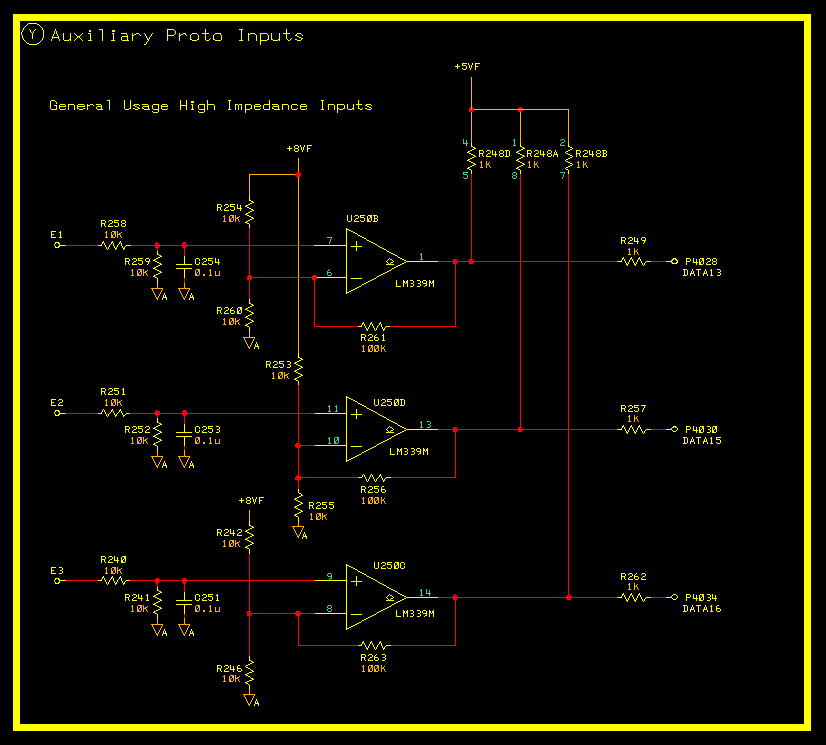

Auxiliary General Purpose Inputs - Block Y


        Here we have three general purpose comparator inputs.  The trip points can be configured to any reasonable input voltage level.  Their inputs are terminated at proto pads so they will need to be tied to one of the free I/O pins of the rear DB-37 auxiliary connector (Block ZZ).
