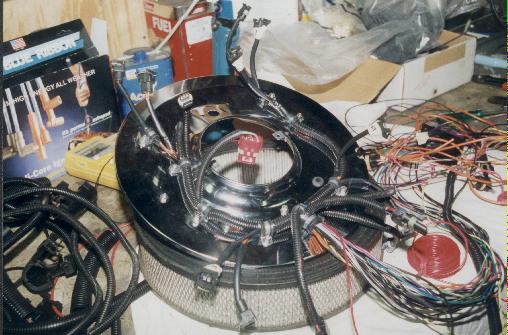

The poor blown apart wiring harness trying to find its way
around the base of the air cleaner. It does tie the air cleaner to
the wiring harness but it is the closest route from the sensors and injectors
to someplace were they could be hidden. |
|

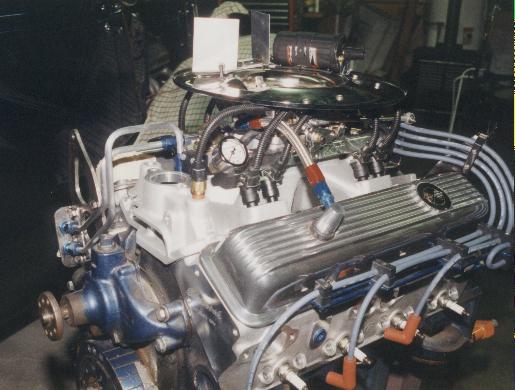

You can see were the coil and ignition amplifier were mounted
in the air cleaner. Many connections are made inside of the large
harness as it makes its way down the back side of the motor. |
|
A view from the other side. |
|

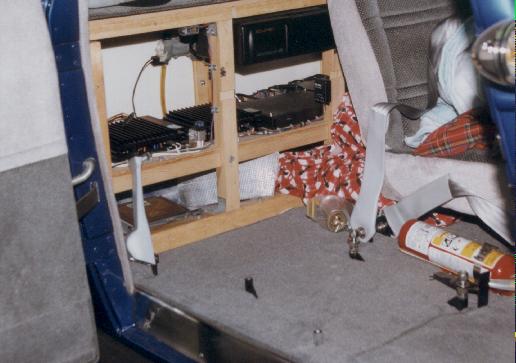

The ECU is mounted in the electronics bay located behind
the seats. The CD changer, amplifiers, and assorted control modules
are mounted in this space. The main wiring harness is located inside
the frame rail finding its way up and into the backside of this bay. |
|

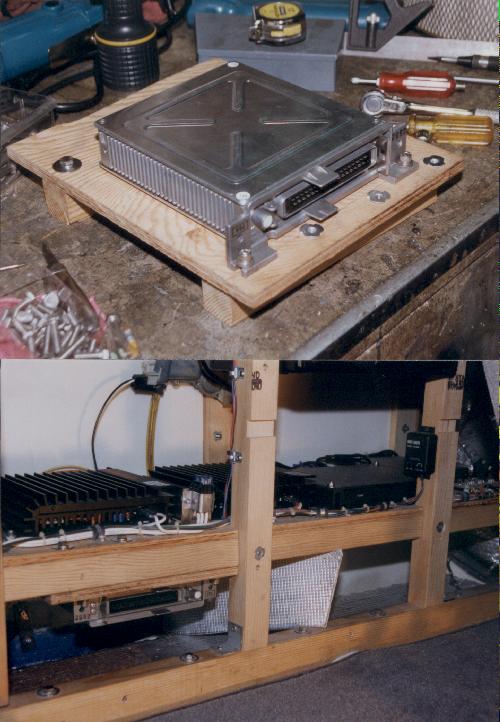

The ECU is mounted to a plate that is in turn mounted under
the main shelve. Care was taken to assure good one point ground connections
and that the sensor grounds made their way back to a one pint ground.
Ground loops could play havoc with your system if care is not taken when
extending the wiring harness. |
|

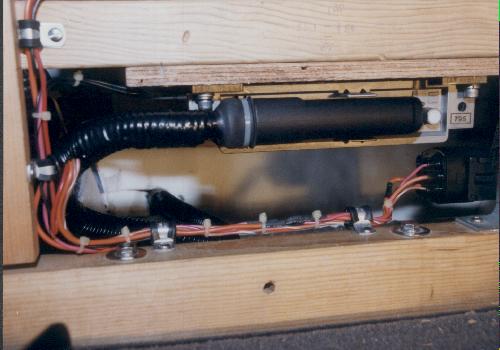

Finally the main harness connection is made to the ECU. |
|
