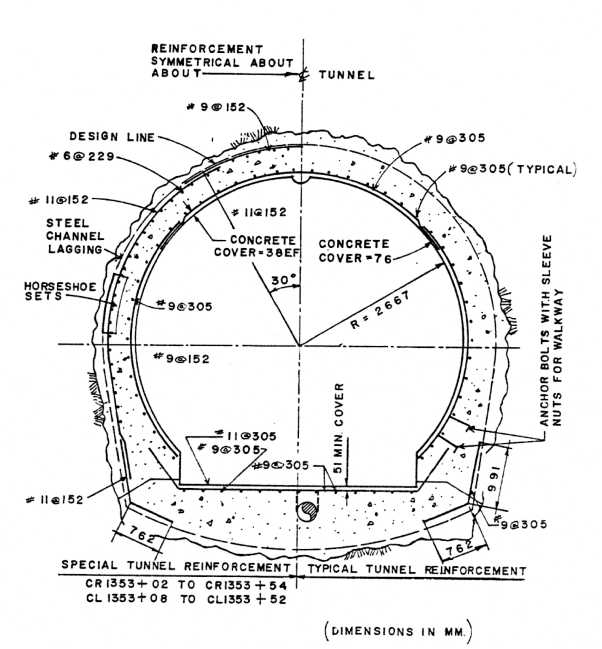

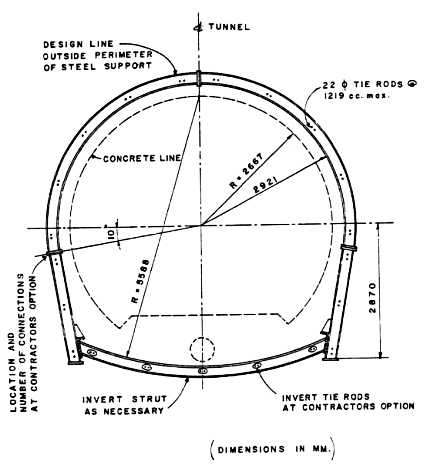

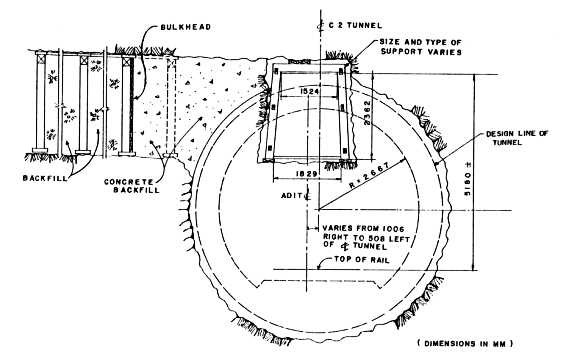

Figure 12. Comparative cross sections of the Berkeley Hills Tunnels at various stages of construction, taken from Brown, Brekke and Korbin (1981). The upper section shows the position of the exploratory adit excavated into the north tunnel, through the Hayward fault. (from BART records)
Dimensions in mm.
