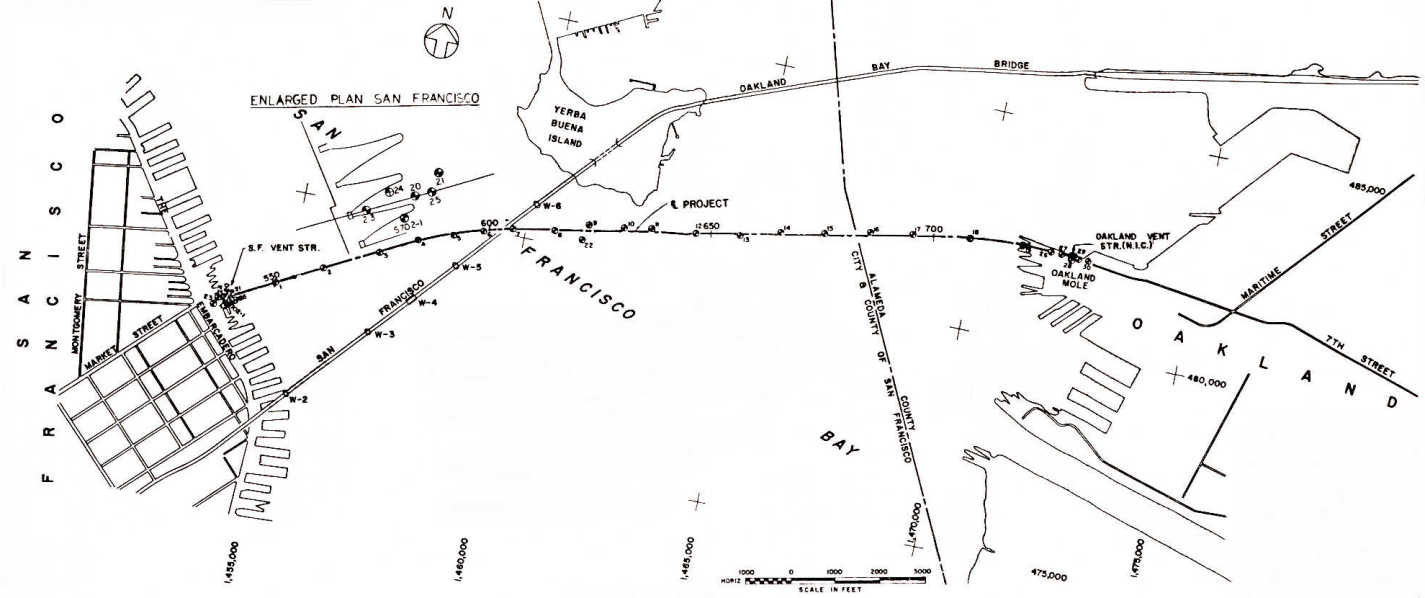

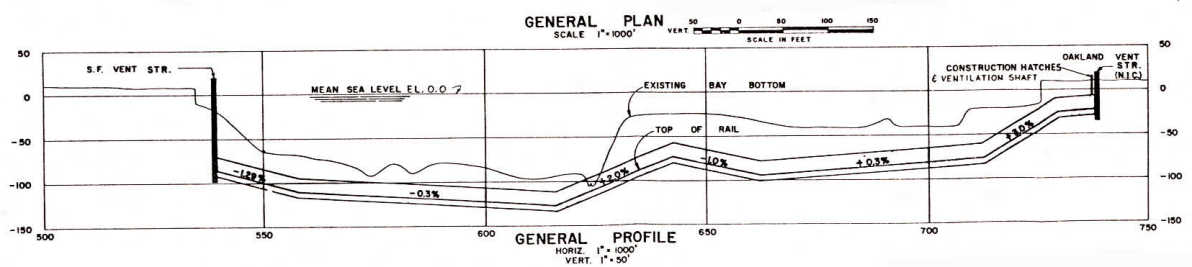

Figure 3. Plan and profile views of the BART Transbay Tubes, as originally conceived in 1965. The focus of the design was to keep the twin tubes sitting on soft compressible soils, avoiding bedrock promontories. Note the varying grades across the Bay and the ventilation structures at either end.
