IC-7300 or other HF Transceiver <==> Transverter Interface

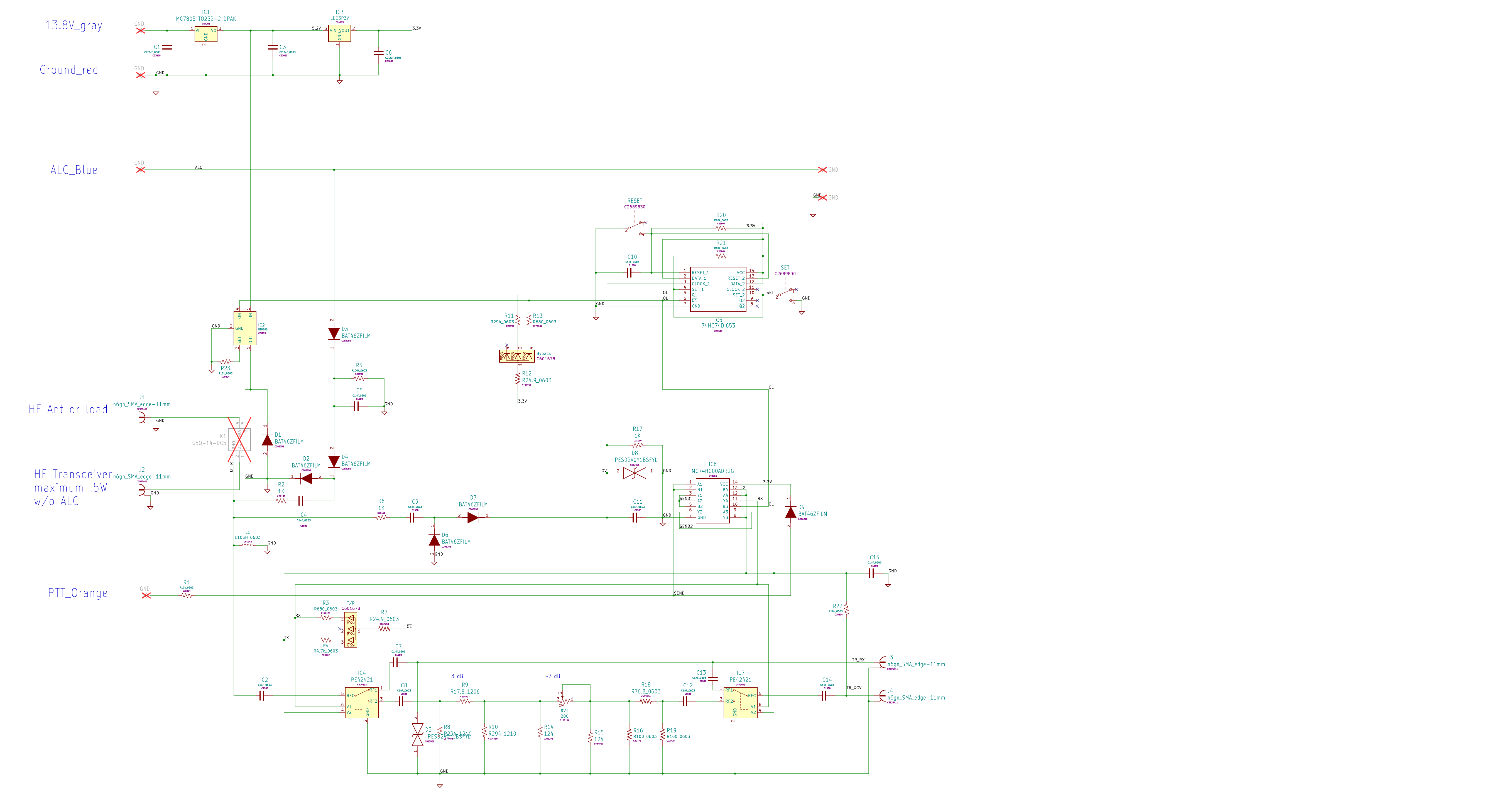

For better  quick  viewing of the design, download the Source file from the Material List  below , unzip it and drop the .sch or .pcb file onto kicanvas from a web browser.

Features

  • Provides -3 to 10 dBm (.5 to 10 mW) to Transverter
  • Controls IC7300 or other HF Transmitter or Transceiver  Power via ALC
  • Provides over-drive shutdown & bypasses transverter when unpowered or over-driven

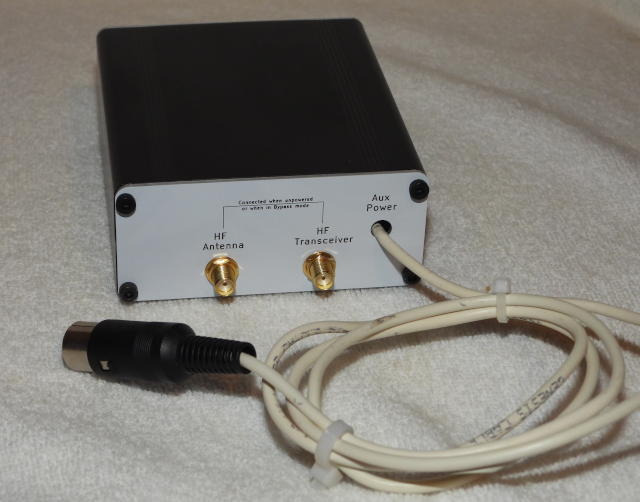

  •  Connections:
    •     SMA x2: HF from IC7300 & Bypassedto HF Antenna
        SMA x2: T/R to Transverter & Rx-only as Receiver Converter
  • Powered from IC-7300 Aux Connector, 13V @ 300 mA
  • Can be used with many other HF radios and transceivers
  • Works directly with N6GN 0-2 GHz Transverter
  • Double-sided, through-hole plated, silk-screen printed PCBs
    •

    Material List

    What you will need to build this hardware

    Item Description

    Provider

    Source Code

    Notes

    Approximate Material Cost

    (excludes setup fees and shipping)

    Assembled TI PCB

    Download TI Kit Files

    Download TI PCB Source Files
    		US$

    38x88x100mm Clam Shell Enclosure

    eBay
    		Other sources possible. Enclosure needs to accept 84mm wide PCB. US$12

    38x88mm TI PCB Front Panel

    Download TI PCB Front Panel Kit Files

    Download TI PCB Front Panel Source Files
    		US$1

    38x88mmTI PCB Rear Panel

    Download TIPCB Rear Panel Kit Files

    Download TI PCB Rear Panel Source Files
    		US$1
