Proposed Form Handling Architecture

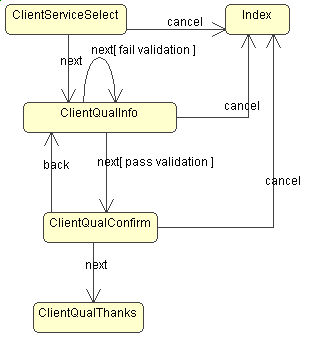

Web Pages Are A Set Of Discrete States

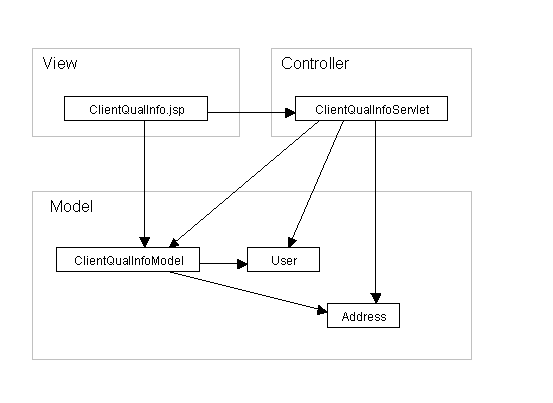

A single state is represented by Model-View-Controller components, using the following naming convention:  <state>.jsp, <state>Servlet, and <state>Model.

View (<state>.jsp)

Controller (<state>Servlet)

Model (<state>Model)

Rationale for Using MVC

Goals:

• Make JSPs as HTML-like as possible for web designers--avoid large scriptlets and numerous bean property settings
• Keep presentation in JSPs as much as possible
• Reduce dependencies on single files--we don't want web designers and java programmers touching the same files simultaneously or we get version clashes
• Break down and simplify conditional logic so Java programmers can easily maintain code

The main consequence of using the MVC system is that there will be more files than if we didn't use MVC.  For every state, there are at least three files that are involved.  However, each file should be much simpler and easier to understand than if these things were in fewer files, so it seems to be an acceptable tradeoff.

Example ClientQualInfoServlet code fragments:

/**
 * Performs simple conditional logic to determine which state to
 * transition to.
**/
public void doPost(HttpServletRequest request,
                   HttpServletResponse response) throws ServletException {
    if (wasCancelChosen(request)) {
        discardClientQualInfoModel(request);
        enterState("index.jsp", request, response);
    } else { // next was chosen
        updateClientQualInfoModel(request);
        if (getClientQualInfoModel(request).isInvalid()) {
            enterState("ClientQualInfo.jsp", request, response);
        } else {
            createClientQualConfirmModel(request);
            enterState("ClientQualConfirm.jsp", request, response);
        }
    }
}

private void discardClientQualInfoModel(HttpServletRequest request) throws ServletException {
    //
    // Remove the model from the session to allow the garbage collector
    // to reclaim memory.
    //
    HttpSession theSession = request.getSession();
    theSession.removeAttribute("clientQualInfoModel");
}

private ClientQualInfoModel(HttpServletRequest request) throws ServletException {
    HttpSession theSession = request.getSession();
    return (ClientQualInfoModel) theSession.getAttribute("clientQualInfoModel");
}

private void createClientQualConfirmModel(HttpServletRequest request) throws ServletException {
    ClientQualConfirmModel theModel = new ClientQualConfirmModel();
    //
    // Set model properties (not shown here), then add the model to the session
    // so that it is available to the next view.
    //
    HttpSession theSession = request.getSession();
    theSession.setAttribute("clientQualConfirmModel", theModel);
}

/**
 * Set the model properties using information gleaned from the request.
 * Typically this will be pulling info out of forms and setting properties
 * on the model.
**/
private void updateClientQualInfoModel(HttpServletRequest request) throws ServletException {
    ClientQualInfoModel theModel = getClientQualInfoModel(request);

    theModel.getUser().setFirstName(request.getParameter("firstName"));
    theModel.getUser().setLastName(request.getParameter("lastName"));
    //
    // etc.
    //
}

/**
 * Forwards the request and response to the given stateView, which
 * is typically a jsp.  Prior to calling this method, please ensure
 * that all business objects that the stateView depends on are available
 * in the request (either put them in the session or make them available
 * as page scope beans).
**/
private void enterState(String stateView,
                        HttpServletRequest request,
                        HttpServletResponse response) throws ServletException {
    RequestDispatcher theDispatcher = ServletContext.getRequestDispatcher(stateView);
    theDispatcher.forward(request, response);
}

Example ClientQualInfo.jsp code fragments

<%!
    //
    // Returns <FONT COLOR="red"> if the given fieldName in the given ClientQualInfoModel
    // is invalid, otherwise returns <FONT COLOR="black">.  Use it like this:
    //
    // <%= fontColorTagFor("firstName", clientQualInfoModel) %>
    // <B> First Name </B>
    // </FONT>
    //
    public String fontColorTagFor(String fieldName, ClientQualInfoModel model) {
        if (model.isFieldValid(fieldName)) {
            return "<FONT COLOR=\"black\">";
        } else {
            return "<FONT COLOR=\"red\">";
        }
    }
%>

<jsp:usebean id="clientQualInfoModel" class="ClientQualInfoModel" scope="page" />
<%
    if (clientQualInfoModel.isInvalid()) {
        //
        // print out the fields that need to be changed
        //
        %>
        <FONT COLOR="red">
        Please review the indicated fields:<BR>
        <jsp:getProperty name="clientQualInfoModel" property="validationErrorList" />
        </FONT>
        <%
    }
%>
<FORM ACTION="ClientQualInfoServlet" METHOD="POST">

<%= fontColorTagFor("firstName", clientQualInfoModel) %>
<B>First Name</B>
</FONT>
<INPUT TYPE="TEXT" NAME="firstName" VALUE="<%= clientQualInfoModel.getFirstName() %>" SIZE="20" MAXLENGTH="40">

<%= fontColorTagFor("lastName", clientQualInfoModel) %>
<B>Last Name</B>
</FONT>
<INPUT TYPE="TEXT" NAME="lastName" VALUE="<%= clientQualInfoModel.getLastName() %>" SIZE="20" MAXLENGTH="40">

<!-- etc. -->

Example ClientQualInfoModel code fragments

public class ClientQualInfoModel extends FormModel {
    //
    // FormModel would be an abstract class that provides
    // functionality used in all form models, such as
    // collecting validation problems.
    //
    private User user;
    private Vector validationProblems = new Vector();

//
// Constructors
//
    public ClientQualInfoModel(User user) {
        this.user = user;
    }

//
// Accessing
//
    public String getFirstName() {
        return this.user.getFirstName();
    }

    public String getLastName() {
        return this.user.getLastName();
    }

    // etc.

    public boolean isInvalid() {
        try {
            this.user.validate();
            return false;
        } catch (ValidationException e) {
            collectValidationProblems(e);
            return true;
        }
    }
}

Notes

• JSP author and servlet author would have to agree on form input names (e.g. "firstName").  We probably want to have a naming convention related to the business objects.  If there is an accessor method on a User object called "getFirstName()" we probably should use "firstName" as the input name.
• Validation should be done on business objects, not UI or servlets.  The data access layer should do validation on persistent objects prior to committing them to the database, since invalid objects should never be stored there.
• Maybe we need a ClientQualState business object as a facade for the jsp views.  Otherwise the jsps need to potentially read a lot of stuff out of the session.  Such an object also gives a good place to put things like validation errors.
• Do we want to have naming conventions for jsps, servlets, facade objects?  Probably yes, something like <state>.jsp, <state>Servlet, <state>Model would be make it easier to tell which pieces are the view, controller, and model for each discrete state.  For example, ClientQualInfo.jsp, ClientQualInfoServlet, ClientQualInfoModel.
• In the above example, ClientQualInfo.jsp represents at least two states:  the standard entry state, and the error state.  We could break this down further and make the error page a separate state and avoid some of the conditional code.  The tradeoff is that we'd have two jsps that are largely similar that would both have to be changed should there be presentation changes.
• For multi-page forms, we potentially need a model for each page.  If the models themselves relied on the same persistent objects (e.g. User, with each page partially filling in the User object), the above simple definition of isInvalid() would not work.  There would need to be separate validation for each page.
• Having the controller create the model for the next state is a bit weird.  I suppose we could omit this step and just have the jsp do it in the jsp:usebean tag.
