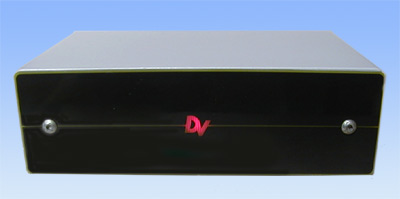

The Dynavector P-75 Phono Stage is a unique entry level phono stage with several outstanding features that ensures the P-75 will out perform other phono stages costing considerably more..
The P-75 also includes the patent P E (phono enhancing) circuit designed by Dr Tominari to dramatically improve the performance of low output moving coil cartridges. By a simple arrangement of jumper settings all conventional, MM, MI, high and low output cartridges are catered for.
The P-75 also has an advanced power supply that operates from a conventional 12V AC to DC adaptor. This adaptor has absolutely no bearing on the sound quality.
The P-75 power supply runs at over 1/4MHz. It takes the low grade single voltage DC supply from the ac adapter and converts it to the dual high voltages required for true professional quality audio reproduction. The operating frequency is over 12 times higher than the top of the audio band and it incorporates super low noise wideband regulators in its output stage to give ultra low noise supply rails. The internal P-75 power supply is totally self contained and stores many times the maximum possible energy requirements for the phono amplifiers. This means that the quality or size of the external ac adaptor is irrelevant. Increasing the capacity of the external supply will make no difference to the quality of the sound.
Like all Dynavector products the P-75 whilst innovative carries on our proud tradition of faithfulness to the heritage of phonographic recordings, exhibiting clear, full-bodied, distortion free sound that analog enthusiasts require.
Features
The P-75 is a stand-alone phono to line level amplifier. It can operate with the following cartridge types: | |||
Cartridge Type
|
Input Sensitivity
|
Gain
|
Loading
|
Low output MC Standard phono stage
|
0.2mV or 0.15mV
|
60 & 63dB
|
30, 100, 470 ohms
|
Low output MC Phono Enhancer*
|
-
|
-
|
Zero ohms
|
High output MC MM, MI
|
2mV
|
40dB
|
47k (47,000) ohms
|
Dimensions ( W x D x H )
|
133W x 83D x 44H mm Weight 400g
|
||
Weight
|
400g
|
||
*Input sensitivity and gain is determined mainly by
the cartridge internal resistance. Three resistance/gain adjustments available.
|
