The Genesis ServoSub™ 2/12t is a unique subwoofer that is universally installer friendly. It delivers prodigious output capability with unparalleled delicacy and articulation in a heavily-braced enclosure with a unique shape that allows it to be located at a sidewall, rear-wall or even in a corner.
The

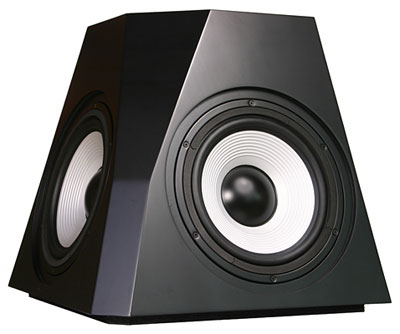

Genesis ServoSub™ 2/12t
Available in Satin Black
Available in Custom Automotive Finish
TECHNOLOGY IN THE SERVICE OF SOUND
Its form factor makes the S2/12t an ideal partner for surround or rear speakers in either home theater or multi-channel music applications. With low frequency capability down to 16Hz, the S2/12t is able to distribute bass around the room as part of a multi-channel system. The Genesis LFE Blend™ technology allows the S2/12t to be used BOTH to augment the low-frequencies of the surround or rear speakers, as well as to perform as a subwoofer for the low frequency effects of a multi-channel sound system.
Designed to work in multi-subwoofer installations, the S2/12t fits nicely into corners of rooms. Placed in this manner, it will excite every mode in the room at its operating frequencies. This will give the best, tightest, smoothest, and most impactful bass in well-designed rooms. Check the acoustics of your listening room with The Sweet Spot calculator on Stereophile's Guide to Home Theatre.
The S2/12t features two 12-inch ribbed aluminum cone woofers and a built-in 500W servo-controlled Class-D discrete MOSFET bass amplifier that provides great impact, extraordinary control and thermal stability even when playing the most demanding sources at high volume.
THE SERVO ADVANTAGE
TheS2/12t adds the latest iteration of a technology refined by Genesis and long acknowledged by critical listeners as essential to accurate bass reproduction, Servo-control. A precise yet lightweight accelerometer on each driver continuously monitors motion and sends a signal to high speed circuitry that compares actual cone movement to the input signal. The comparison circuit instantly identifies any deviation from ideal response and instantaneously adds a corrective signal to compensate for any deviation from the input signal even when they include complex, rapidly evolving musical bass lines or artificial effects created to enhance your viewing pleasure. The S2/12t technology guarantees earth-shaking bass coupled with stunning articulation.
POWER FOR TOTAL CONTROL
There are times when finesse requires brute force. The S2/12t's proprietary and ultra-efficient GSAT discrete MOSFET switching amplifier is a prime example of power's intelligent application in the service of sonic subtlety. With output capability up to a full kilowatt, the S2/12t's Class D design provides extraordinary control and exceptional thermal stability even when playing the most demanding sources continuously at high volume.
THE CRUCIAL INTERFACE
Perhaps the greatest impediment to fully enjoying a subwoofer's contribution with both music and film sources lies in how the woofer system mates with a variety of wide range loudspeakers. The S2/12t accomplishes this task with ease. A fully adjustable low pass filter and volume control allows precise selection of optimum settings for level matching and accurate integration with any music or home theater system.
SPECIFICATIONS:
Frequency Response 16Hz to 140Hz, +/-3dB
Amplifier Power Rating 500 watts RMS
LF Transducers Two 12"¨ Aluminum ribbed cone
Controls Low Pass, Bass Gain, LFE Gain, Phase Invert
Inputs High-level with 5-way binding posts
Preamp level unbalanced RCA and balanced XLR LFE unbalanced RCA and balanced XLR
Input Impedance 33K ohms
Outputs LFE daisy-chain unbalanced RCA and balanced XLR
Dimensions H 21" x W 31"¨ x D 16" H 533mm x W 787mm x D 406mm
Weight 67.5 lbs (31 kg)
Finish Satin Black
