Soundscape Product Information
Parasound

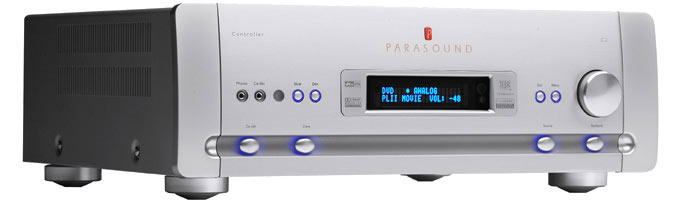

Halo C 2 7.1 Channel Surround Controller
PARASOUND: Since 1981 our name has been synonymous with rock-solid reliability,
amazing sound quality and unequaled value. Building on this reputation we have
created an ambitious new line of components, HALO by Parasound. This exciting
series brings you the highest level of refinement, performance, and distinctive
design.
Halo components have earned the highest praise from top magazine reviewers
and critics across the globe. The striking industrial design of these products
was given the prestigious Good Design Award from the Chicago Athenaeum, and
our remarkable JC 1 power amplifier was crowned Amplifier of the Year by Stereophile
magazine - a significant honor which until now was bestowed only upon products
at vastly higher prices.
C 2 Features:
- Dolby Digital EX, DTS ES, and Dolby Pro Logic II surround THX Ultra2 Certified
with THX Surround EX 7.5 Channel Enhanced Surround; 7.1 with 4 programmable
outputs
- Additional DSP modes include Surround Music and Party Patented hybrid bass
management prevents time smearing
- Automatic digital audio and video input selection

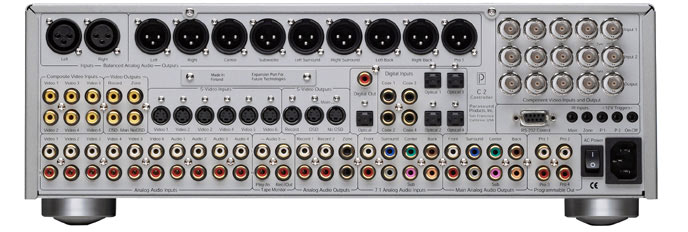

- Nine balanced outputs, two balanced inputs with XLR connectors
- Four audio only inputs plus a tape monitor/external processor loop
- Eight digital inputs; two digital outputs 7.1 analog input with pure analog
path, bypasses DSP
- Six audio/video inputs with composite and S-Video connectors
- 3 composite video and 3 S-Video outputs: OSD, no OSD, record
- 2 assignable component/RGB video inputs with separate H and V Sync
- 1 component/RGB video output with separate H and V Sync BNC to RCA adapters
are included for component video jacks
- Component inputs/output pass 1080i and 720p signals flawlessly
- Digital inputs and surround modes are assignable to sources
- Presets for optimum and analog input levels for various sources 100% automatic
calibration of channel levels and delay times
- Calibration microphone with 25’ cable included
- Dual zone control with analog audio and composite video outputs
- External IR input jacks for main and second zone
- Three 12v triggers, two programmable for events; wires included
- Fully upgradeable and controllable via two-way RS-232 port 3u chassis, rack
mountable
- Award winning customized MX-700 and Sidekick remotes included
- Parasound’s 10 years parts, 5 years labor warranty
C 2 Specs:
- Frequency response: digital inputs 20 Hz - 42 kHz; analog inputs 20 Hz
- 22 kHz; 7.1 channel input 5 Hz - 200 kHz +0/-3 dB
- Total harmonic distortion: digital inputs <.002%; analog inputs <.002%;
7.1 channel input <.002%
- Signal to noise ratio: digital inputs 102 dB; analog inputs 98 dB; 7.1 channel
input 107 dB
- Maximum input levels: balanced 35 V rms; unbalanced 3.6 V rms; 7.1 channel
input 8 V rms
- Maximum output levels: balanced 16 V rms; 7.1 channel outputs 8 V rms;
programmable outputs 8 V rms
- Video bandwidth: composite and S-video (non OSD) 30 MHz; component video
300 MHz
- Dimensions: 17-1/4" w x 5-7/8" h x 16" d, 5-1/4" h without feet
- Net weight: 18 lbs.
