Soundscape Product Information

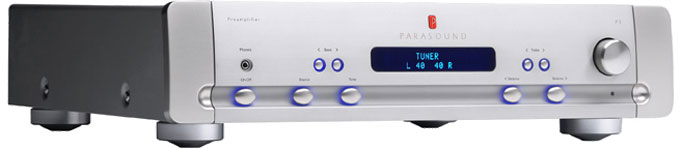

Parasound Halo P 3 Preamplifier
Halo P 3 Preamplifier continues our tradition of incredible sound
and tremendous value while adding stunning industrial design. With features
like direct balanced XLR inputs and outputs, a unique switchable phono/line
input stage, and a remote control that also operates the T 3 Tuner, the P 3
will provide you with hours of musical enjoyment. The beautiful looks and amazing
sound quality of this two-channel preamp make it suitable for both the first
time high performance listener and the seasoned audiophile.
P 3 Features:
- 6 line inputs, one input switchable to MM phono

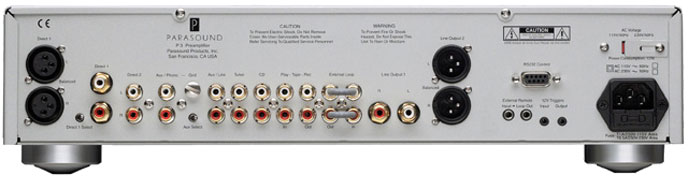

- Relay switched direct inputs: balanced and unbalanced
- External processor send and receive loop
- Balanced XLR and unbalanced RCA outputs
- Vacuum fluorescent status display
- Defeatable bass and treble controls
- Enormous encapsulated toroid power transformer
- Dual layer glass epoxy circuit boards
- High resolution stereo headphone circuit RS-232 control port
- External IR input and loop output jacks
- Two 12v triggers; 1 input and 1 loop output
- Gold-plated RCA jacks Remote control also operates
- T 3 Tuner Robust 2u
- Chassis, rack mounting adapter available
- Parasound’s 10 years parts, 5 years labor warranty
P 3 Specs:
- Frequency response: 5 Hz - 55 kHz, +0/-1 dB, full output
- Total harmonic distortion: < 0.01% 1 kHz; < 0.03% 20 kHz
- IM distortion: < 0.03%
- Maximum output: > 8 V before clipping
- Input impedance: line input 30 kW; phono 47 kW
- Output impedance: 60 W
- Input sensitivity: line inputs 150 mV, +/- 5%; phono 2 mV
- Max input level: 10.5 V before clipping
- S/N ratio: line input > 92 dB, A-weighted, ref 1 V output line input > 84
dB, unweighted, ref 1 V output phono > 72 dB, ref .5 mV input
- Crosstalk: > 55 dB, 20 kHz
- Channel level matching: < 0.1 dB
- Voltage: Switchable for 110V - 120V or 220V – 240V operation
- Dimensions: 17-1/4" w x 4-1/8" h x 13-3/4" d, 3-5/8" h without feet
- Net weight: 16 lbs.
