Soundscape Product Information
Plasma Display Wall Mounts
Don't forget to dress your Plasma or LCD with Custom Frames
from
Aristos - Chief
PDR AWM250
Articulating Wall Mounts for Flate Screens up to 250 lbs.
Retail Price: $1000
Soundscape Price: $650
INCLUDING: FREE DOMESTIC DELIVERY
- 250 lb. load rating* (Successfully load-tested over 1070 lbs.)
- Fits Displays 55" and larger
- Can rotate a 60+” Display 90 degrees
- Tilts up and down 15 degrees
- Cable management included
- Anti-Creep tension adjustment
- All hardware included
- Less than 4.7” thin profile when closed
Download
Brochure
The latest from Vantage Point. A One Person Install!
Soundscape Price: $399
FREE DOMESTIC DELIVERY
It starts with mounting the manageable lightweight aluminum
rail to the wall, easily hanging the monitor onto the rail without having to
pre-connect any wiring and finally folding the monitor down to complete the
installation and wiring with an ease that only the UFO can offer.
One is all you will need! The UFO’s unique design adjusts for
various wall stud spacing, offers lateral positioning of both the rail and monitor
and will attach to monitor hole patterns ranging from VESA 200mm to large 50”
plasmas. Forward tilt ranges from 0 to 90 degrees, the greatest range on the
market today.
There can only be one! The patent pending Universal Flat-Panel
One’s refined engineering creates a slim 2 3/8” gap between the wall and the
back of the monitor, closer than other mounts that provide tilt! The quality
of materials, design and function of this product clearly put it in a class
of its own.
• Easy installation.
• -3° to 90° flip down allows for ease of wiring.
• Fits 200mm VESApattern LCDs.
• Designed for large plasma displays
• Easy left to right monitor positioning during installation.
• Wall brackets accomodate any stud spacing.
• Available in Silver or Black
New from
PREMIER MOUNTS
Finally there
is a way to have a Swing-out Mount that allows your LCD or Plasma fit fit up
against the wall.

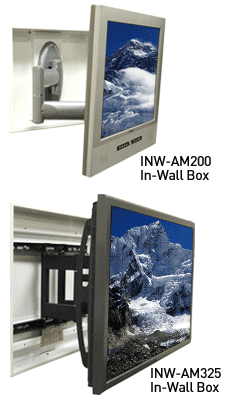

These two recessed mounts from Premier help hold the display safely and securely
while allowing for a sleek, finished look. INW-AM200 In-Wall Box for AM2 Swingout
Arm for 17" - 40" LCD displays
Soundscape Price $199*
INW-AM325 In-Wall Box for AM250 and AM3 Swingout Arms for 37" - 61" displays
Soundscape Price $299*
- Cable routing through knockouts
- Drop-in power/signal boxes for easy wiring
- Integrated PEM-Nut hardware
- Frame allows for a finished look
- Integrated electrical cable raceways
- No mount assembly required
- Available in white
*Plus Freight
Coming Soon
Plasma & LCD Lifts
ProMounts UA-PRO
The
ProMounts cantilever mounts are stunning pieces of engineering, and are the
most flexible mounts for flat panel displays. The cantilever mounts offer maximum
adjustability, including horizontal extension, 180º of lateral rotation, as
well as full swivel and tilt capabilities. More than just mounting hardware,
these cantilever mounts have a tactile quality that enhances the high technology
aspects of any flat panel installation.
Retail: $699
Soundscape Price: $559 each
Free Freight
In Stock for fast delivery!
KEY FEATURES:
- 150-lb. maximum
- Size compatibility 37"-55"
- Cantilever arm mount for plasma panels Allows maximum flexibility for installing
and viewing your plasma display Arm allows extension and 180° lateral rotation
for viewing from multiple locations Allows tilt and swivel for optimum viewing
- Durable powder coat finish Available in silver

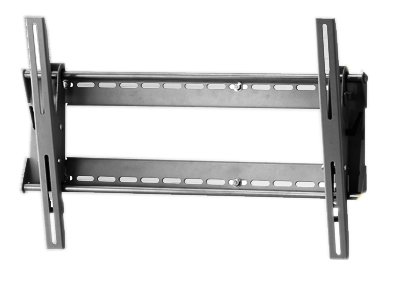

ProMounts UT-PRO3
37''-63'' Flat Panel Tilt Mount
The
ProMounts tilt mounts allow for the use of security hardware, and provide simplicity
of installation combined with enough tilt capability to optimize viewing for
any flat panel display. The UT-PRO3 allows the mounting of plasma displays of
up to 63” in size and 200 lbs in weight, while introducing several key features
that take the UT-PRO3 a significant step forward in plasma panel mounting.
Retail: $299
Soundscape Price: $249 each
Free Freight
In Stock for fast delivery!
KEY FEATURES:
- 32” to 63” display mounting capability.
- Load capacity up to 200lbs
- Extendable for large displays via included horizontal and vertical extension
rails
- Lift n’ Lock Installation™ feature

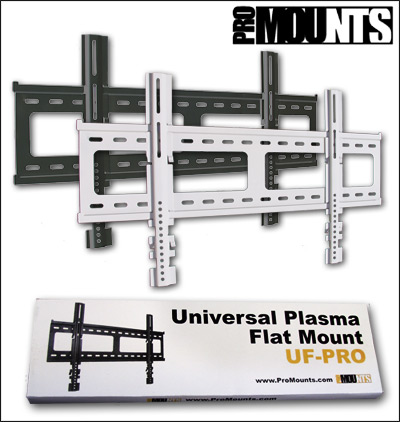

ProMounts UF-PRO
37''-63'' Flat Panel Mount
The
FLATTEST universal PLASMA and LCD mount in the world.
The new UF-PRO is manufactured from the highest quality materials,
and is your new solution for mounting a flat screen plasma or large size LCD
TV on your wall. It is easy to install and compatible with over 95% of current
screens by major manufacturers.
The new design is also the FIRST on the market with a built-in
V-BAR, which allows you to vertically adjust the height of the screen by simply
re-adjusting the V-BAR. All necessary hardware is included for different wall
types. Horizontal and vertical position adjustments allow perfect positioning
of the screen regardless of the distance of wall studs.
Retail: $199
Soundscape Price: $159 each
Free Freight
In Stock for fast delivery!
KEY FEATURES:
- Fits most Plasma and LCD screens from 37" to 63"
- Supports up to 175 lbs.
- Heavy gage steel construction
- Black or silver finish
- 3 main parts allows for Easy installation
- Only 0.98" from the wall
- Up to 3" of vertical adjustment after initial installation
- Theft-resistant security fasteners included
- Mounting hardware included
Compatibility:
This universal wall-mount bracket is designed to fit flat-panel plasma and LCD
screens from 37" to 63". The TV can have a maximum weight of 175 pounds. Mounting
The wall plate must be anchored directly to wall studs using the supplied lag
bolts. The slots in the wall plate can accommodate a variety of stud spacing,
allowing you to easily mount the TV to wall studs that are 16" or 24" on center.
Once the wall plate is anchored to the wall studs and the TV rails (with the TV
attached) are hooked onto the wall plate, the TV can slide left to right, allowing
you to center the TV on the wall. After the TV is secured, it will be held approximately
0.98" from the wall.
ARTICULATING WALL MOUNT FOR LCD TV UP TO 22" WITH BUILT IN CABLE MANAGEMENT
ProMounts UPA-100
ARTICULATING
WALL MOUNT
FOR LCD TV UP TO 22"
WITH BUILT IN CABLE MANAGEMENT
Retail: $279
Soundscape Price: $199 each
Free Freight
In Stock for fast delivery!
Chief PDS2000 Series
Dual Swing Out Arm Wall Mount
Soundscape Price: Our Price: $589.00 (Varies
with options)
Retail Price: $749.00
An advanced solution especially popular for business and residential installations,
Chief's PDS 2000 Series Dual Swing-Out-Arm Wall Mount offers expansive viewing
angles and allows displays to be recessed into walls or cabinetry for a flush
finish. The PDS uses Chief's exclusive Q-Latch Mounting System for easy installation,
stable mounting, quick release and optional security. Accommodates most 42"
and larger displays.
Features:
- Exclusive Q-Latch Mounting System secures the Large Flat Panel Display with
a lockable latch
- UL listed Pitch adjustment 5 degrees up, 25 degrees down on gravity-centered
axis point
- Roll adjustment 3 degrees
- Pivot 90 degrees left or right of center
- Horizontal traverse 25" right or left of center
- Designed to accommodate 50" and larger displays. (Will also accommodate
42" and some smaller displays.)
- Latches in the home position
- Cable management system
- Display installs in portrait/landscape views
- Video conferencing shelf compatible
- Compatible with locking flag accessories (PAC-130, PAC-135)
- Wall Plate dimensions: 18.06" W x 19.44" H
- Mounts easily with centers on 16" studs.
- Comes in a black finish
- Distance from wall: 2 5/8"
- Max Extension from wall: 33 5/8"
- Weight capacity: 150 lbs
Chief PWS-2000 Series
Swing Out Arm Wall Mount with 3 Pivots
Soundscape Price: $449.00 (Varies with options)
Retail Price: $569.00
Suitable for most 42" and smaller displays, Chief's PWS 2000 Series
Swing-Out-Arm offers advanced viewing angles and allows displays to be recessed
into walls or cabinetry for a flush finish. The PWS uses Chief's exclusive Q-Latch
Mounting System for easy installation, stable mounting, quick release and optional
security.
Features:
- Screen is 21" off wall when arm is fully extended
- Back of screen is approximately 3 1/2" off the wall when arm is retracted
- Exclusive Q-Latch Mounting System secures the Large Flat Panel Display with
a lockable latch
- UL listed Pitch adjustment by knob 5 degrees up, 15 degrees down
- Roll adjustment 2 degrees
- Pivot 90 degrees left or right of center on most 42" displays or smaller
- Accommodates 42" and smaller displays (accommodates some 50" displays)
- Horizontal traverse 22" right or left of center
- Cable management system
- Display installs in portrait/landscape views
- Video conferencing shelf compatible
- Compatible with locking flag accessories (PAC-130, PAC-135)
- Wall Plate dimensions: 17 1/2" W x 15" H
- Mounts easily with centers on 16" studs. C
- omes in a black finish
- Weight capacity: 100 lbs
Universal Plasma Mount 4230-Pro
ULTRA THIN (1-IN) STATIC FLAT WALL MOUNT FOR PLASMA DISPLAY TVs under 150lbs
A functional answer for basic, low-profile applications, 4230-Pro Wall Mount
is the THINNEST and easiest to install mount available.
It uses exclusive Q-Latch™ Mounting System for easy installation, stable mounting,
and quick release.
Soundscape Price: $149each
In Stock for fast delivery!
Soundscape Price:Call
Soundscape Price:Call
