Line Stage Preamp

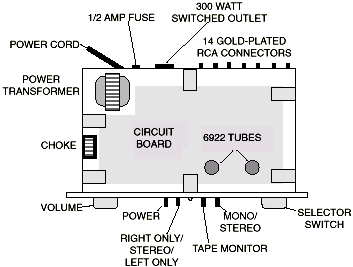

The Quicksilver's New Line Stage Preamp embodies the Quicksilver philosophy of simplicity. It uses only one triode tube section of a 12AX7 per channel, resulting in a very direct sound. Improved distortion, and 100 ohm output capable of driving into amps with low input impedance down to 20K. It can also be used with long interconnect cable. A precision Alps attenuator, with 41 detents, is used for the volume control. Fourteen gold RCA jacks and a switched AC outlet are on the back of the unit. Gain is 18 db.
Specifications
Bandwidth 0.1 Hz to 60 KHz
Gain 18 db
Input Impedance
100 Kohm, 20 Hz-20 KHz
Output Impedance 100 ohm, 20 Hz-20 KHz
Maximum
Input 30 volts RMS, 20 Hz-20 KHz
Maximum Output 65 volts RMS, 20 Hz-20 KHz
Tube Complement 2-6DJ8 or 6922
Dimensions 3"H, 9 1/2"D, 15"W
Front Panel 3 1/4"H, 17"W
Weight 12 lbs.
U.S. Warranty 3 years
parts and labor
Tubes 90 days
| |
|
