Soundscape Product Information

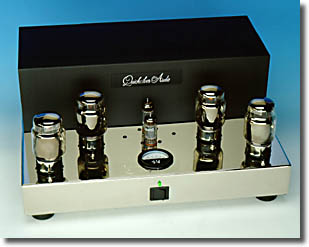

V4 Mono Amplifier
Powerful, musical, and effortless--this is the
sound of Quicksilver's V4 Mono Amplifiers, new in 1997. As with all of Quicksilver's
amplifiers, the V4s are all tube and hand wired point-to-point. The meter is
mounted in the chassis and each tube is biased separately. The amplifiers come
with KT88 output tubes, but EL34s, 6550s, or 6L6s can also be used. Matched
quads will work best but are not necessary. The low screen voltage on the output
tubes (300 volts) makes the tubes last for thousands of hours of "on"
time. The output stage has a separate power supply so that even maximum power
levels will not diminish the sound quality. 120 watts into 4 or 8 ohms. Price
$4,895/pair.
Specifications
Power Output 120 watts into 4 or 8 ohms from 22 Hz to 40 KHz
Power Bandwidth 18 Hz to 80 KHz
Peak Power 180 watts at 1 KHz
Input Sensitivity 1.5 volts
Tube Complement 1-12FQ7 input
1-12BH7 or 12FQ7 driver
4-KT88 outputs
Finish Nickel chassis
Carbide black capacitor and transformer cover
Dimensions 7 7/8"H, 13 3/4"D, 16 3/4"W
Weight 51 lbs., 56 lbs. shipping weight
U.S. Warranty 3 years parts and labor
Tubes 90 days
Last Updated: July 23, 2008
