Soundscape Product Information
Rogue Audio
Magnum M-150 Mono-block
Power, Grace, and Precision -- when you are ready for the ultimate in vacuum tube amplification, look no further than the Rogue Audio M-150 monoblocks. With 150 Watts of pure tube power, the M-150's stunningly accomplish the impossible. After drawing the curtains aside on a soundstage of full height, width, and depth, the pace and musicality of the M-150's provide a riveting performance that will leave you breathless. And along with their profound sonic merits, the M-150 monoblocks are aesthetically exquisite amplifiers that will stoically serve as the cornerstones of your system.
Using circuitry derived from our Zeus amplifier, the M-150 is marked by an exceptional design that places it squarely at the forefront of tube technology. Just a few of the notable features are a "slow start" logical turn-on for extended tube life, a massive high capacity power supply, and the ability to externally switch between either ultralinear or pure triode operation. The highly efficient design also means cool running and greatly extended tube life. Other refinements include balanced (XLR) and RCA inputs, mechanically isolated transformers, matched octets of KT88 output tubes, and separate 4 and 8 ohm taps on the rear. In keeping with Rogue Audio's "quality by design" philosophy, only the finest components are used in the amplifier's construction, truly making the M-150 ... An Intelligent Indulgence.
Features:
- Ultra-wide bandwidth output transformers
- Massive high storage power supply
- True balanced and single ended inputs
- Heavy-duty gold plated XLR and RCA inputs
- External switch for triode or ultralinear operation
- Integral bias meter makes biasing a snap
- (4) KT88, (2) 12AU7, (1) 12AX7 tubes (ea.)
- Both 4 and 8 ohm output taps provided
- 1/2" machined and engraved faceplate
- Heavy-duty gold plated binding posts
- All precision components
- Mechanically isolated transformers
- Welded-wire tube cage
- Heavy (2 ounce) copper circuit board
- Machined aluminum faceplate
- Matched octets of output tubes
- Entirely designed and built in the USA
- Fully tested, burned-in, and auditioned
- 3 year limited warranty (6 months on tubes)
Soundscape's Price: $4,495/pair *
*including ground delivery to the lower 48 states

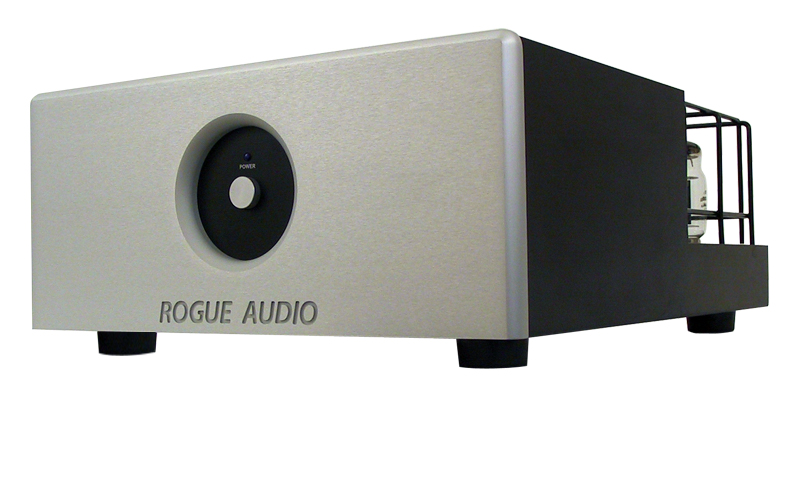

The Rogue M-150 Mono-block Amplifier
Specifications:
- Output power: 150WPC minimum
- Frequency response: 5Hz - 50KHz ± 1dB
- THD: <0.1% typ., <1% at rated power
- Input sensitivity: 1.0V RMS
- Input impedance: 200K Ohms
- Dimensions: 14˝"W x 7"H x 19"D
- Weight: 55 lbs. ea.
- Power requirements: 115/230V - 50/60Hz
click here!
ORDERING BY PHONE
If there is no authorized dealer in your area you can order directly from Soundscape with a 10-day, satisfaction, money-back guarantee.
US and Canada, 1-800-450-HIFI (1-800-450-4434)
Outside the US and Canada, (707) 578-4434
Monday - Friday 11:00 AM - 7:00 PM (PST)
Fax: (707) 578-4436
