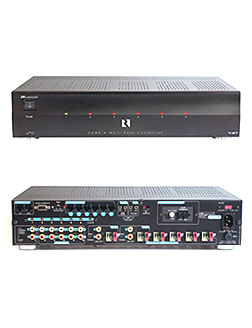

CAM6.6 Six Zone, Six Source Central Controller/Amplifier

The CAM6.6, a Multi-Source/Multi-Zone AM/FM or XM Satellite Radio Receiver that can distribute six audio sources into six zones and is also easily expandable.

The CAM6.6 is offered in two versions. The CAM6.6T with built-in AM/FM tuner, followed by the CAM6.6X the world's first MS/MZ receiver to offer built-in XM Satellite Radio. Both versions offer optional packages with UNO keypads providing additional value, ease of ordering and inventory management. The CAM6.6T offeres a package with (6) UNO-S1 keypads while CAM6.6X is combined with (5) UNO-S1 keypads and (1) UNO-S2 keypad.

Complementing the CAM6.6T is Russound's UNO-S1 smart keypad. The UNO-S1 features a custom five character LCD display that provides important feedback such as source name, radio frequency and preset name. When combined with Russound's smart sources such as the CAM6.6 built-in tuner, ST2-XM Dual Tuner or SMS3 Media Server, the user can view useful information such as station id, artist, track and song title right from the UNO keypad display. The compact single gang keypad is housed in a stylish Decora design that is available in five popular colors to blend in with virtually any decor.

Features:

Trouble-free installation- Plug and Play compatibility. No PC required
Simple to use- attractive UNO smart keypads with LCD display
Expandable- easy to add more zones via Link In/Out feature
Compatible- built-in IR code library controls virtually any a/v component

Technical Information:

AM/FM Tuner
Antenna Impedance: AM: 300 ohm balanced
Impedance: FM: 75 ohm unbalanced
Sensitivity @ S/N: AM: 20 dB 55dBu - FM: 30 dB 6dB max. 12dBu Image
Rejection: AM: 33 dB - FM: 80 dB
S/N Ratio: AM: 45 dB - FM: 60 dB
XM Satellite Tuner XM Band: 2332.5 - 2345 MHz
XM Antenna: 50 ohm SMB Connection
Amplifier Frequency Response: 20 Hz-20 KHz +/- 0.5 dB Watts per channel: 20 Watts RMS x 12 into 8 ohms
Total Harmonic Distortion: 0.05%
Signal to Noise Ratio: 88 dB
Audio Source Inputs: 6 (Including Internal Tuner)
Audio Zone Outputs: 6 Speaker Level - (2 Line Level)
Max Source Audio Input: 5V Peak to Peak, 10k ohms
Zone Variable Line Audio Output: 5.6V Peak to Peak, 4 ohms @ 1 KHz
Zone Fixed Line Audio Output: 5.6V Peak to Peak, 4 ohms @ 1 KHz
Trigger Outputs: 1 Common, 12VDC 100mA each
Trigger Inputs: 1 Home Theater
Frequency Range: AM 530 - 1710 KHz - FM 87.7 - 107.9 MHz
Physical Dimensions: 17"W x 12"D x 3.5"H (43 x 30.5 x 9 cm)
Weight: 18 lbs (8.1 kg) Power Supply: 110 or 240 VAC
Fuse Rating: 110V input; F3A H 250V US and Canada - 240V Input; T1.25A H 250V Europe
