R235LS
Amplifier

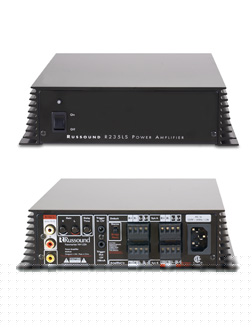

The R235LS 2-channel amplifier has a space-saving low profile design with automatic local source switching capability.
The R235LS allows a local source (e.g., PC or TV in the bedroom) to automatically override the speakers in that particular zone of a distributed audio system. This can be accomplished with a variety of input/trigger options for versatility in many different applications.
The R235LS is rated at 35 watts per channel into 8 ohms and 50 watts per channel into 4 ohms. In bridged mode the R235LS is rated at 100 watts of power into a single 8-ohm load. Each amplifier output channel incorporates robust protection circuitry for safety and reliability under extreme circumstances.
Features Include:
- Automatic switching of speakers between a local source input and distributed audio system sources.
- Space-saving low profile design permits installation in areas most amplifiers will not fit.
- Bridgeable to create one channel with substantial power output
- Reliable and robust circuity designed for stability
Technical Information:
- Stereo Continuous Output Power: 35W per channel at 8 ohms 50W per channel at 4 ohms
- Bridged Mono Output Power: 100W at 8 ohms
- Distortion: <0.05% THD+N from 20Hz to 20kHz
- Signal-to-Noise Ratio: >100dB A-weighted
- Frequency Response: 20Hz to 20kHz ±0.3dB
- Input Sensitivity: 70m V for 1W at 8 ohms 420mV for 35W at 8 ohms
- Line Input Impedance: 47 kilohms
- Voltage Gain: 32dB
- Delay Time: 5 seconds to 4.5 minutes
- Input Trigger: 12VDC 10 kilohms
- Output Trigger: 12VDC 100mA max
- Power Requirements: North America: 120VAC 60Hz 1.2A Europe: 230VAC 50Hz 0.6A
- Dimensions: 8.625" W x 10"D x 2.375"H (22 x 25.4 x 6 cm)
- Weight: 8.5 lbs. (3.8kg)
