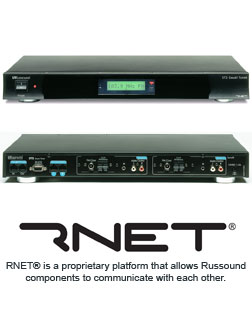

ST2 Tuner
Enjoy listening to the radio again anywhere in the house. With the ST2 Smart
Tuner, it's like having two radios in one. With one set of controls and display,
you get two broadcasts at the same time from one compact single-unit chassis.
It's twice the fun.
Powerful RNET® technology means superior performance and easy operation when
used with a Russound RNET multiroom system. The system's Smart Keypads show
you what's playing in real time.
Features
- Easy to use - RNET® technology provides reliable performance and easy operation
with UNO keypads in a Russound RNET system
- Convenient - Six banks of six presets per tuner—72 total presets—with customizable
preset and bank names
- Adaptable - Works with a wide variety of multiroom systems
- Compatible - Integrates with virtually any RS-232 control device
- Compact - Dual AM/FM tuners in a single-unit rack-mountable chassis
- Complete - Includes rack ears, AM and FM antennas, audio cables, power supply,
and remote control
Specifications
- AM section
- Tuning range: North America: 530 to 1710 kHz Europe: 531 to 1602 kHz
- Sensitivity @ 20 dB
- S/N ratio: 55 dBu
- Image rejection: 33 dB
- Frequency response: 40 Hz to 3 kHz ± 3 dB
- Signal-to-noise ratio: 45 dB
- Antenna impedance: 300 ohms unbalanced
- FM section
- Tuning range: North America: 87.7 to 107.9 MHz Europe: 87.5 to 108 MHz
- Sensitivity @ 30 dB
- S/N ratio: 6 dB max 12 dBu
- Image rejection: 80 dB
- Frequency response: 30 Hz to 15 kHz ± 1.5 dB
- Signal-to-noise ratio: 60 dB
- Stereo separation: 40 dB
- Antenna impedance: 75 ohms unbalanced
- Presets: 6 banks of 6 per tuner, 72 total, customizable Presets 6 banks
of 6 per tuner, 72 total, customizable
- Interface ports RNET link ports: 2 RJ45 RS-232 interface port: 1 DB9
- Keypad ports: 2 RJ45 IR inputs: 2 1/8-inch
- TS Physical Dimensions: 17" W x 1.8" H x 8" D (43 x 4.4 x 20.3 cm)
- Weight: 7 lbs (3.2 kg)
- Power: 12VDC 1.5A separate power supply Included
accessories:
- 1 pair of rack ears
- 2 AM antennas
- 2 FM antennas
- 2 RCA audio cables
- 1 power supply
- 1 ST2-RC Dual Tuner IR Remote Control
Optional accessory ST2-KP Smart Tuner Keypad
