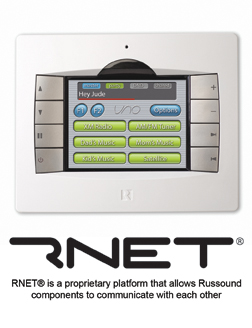

UNO-TS2 Key Pad

Russound’s UNO-TS2 Smart Color Touchscreen is a simple-to-use wall-mounted interface packed with friendly features. Practical in any room, it offers complete control of your listening and viewing experience.

The UNO-TS2 is an exciting new way to control a multiroom entertainment system. When used in a Russound RNET® system with a Smart Tuner or Smart Media Server, the UNO-TS2 provides valuable information such as playlist, channel name, artist name, and song title. And it supports custom presets, music themes, and source names for a personal touch.

The UNO-TS2 uses a mix of hard buttons for the most frequent commands and graphical soft keys for content-related functions. The high-resolution LCD panel is easy to read and displays the system’s status in real time, including the source playing, the selected AM/FM radio station or XM channel, and the volume level in the zone it’s controlling.

The UNO-TS2 also provides one-touch access to favorite CDs, DVDs, and MP3 play lists. An integrated IR receiver supports the use of the UNO-LRC1 system remote and other remotes as well.

Features:

Informative—Real-time display shows what’s playing, with volume level and playlist information right on the touchscreen
Innovative—Built on award-winning RNET® technology to offer complete control and limitless possibilities
Effortless—Full-featured, high-resolution color LCD touchscreen is easy to read and simple to navigate
Practical—Virtually no programming required and its compact, flush design fits neatly in a double-gang box

Technical Information:

Display - 16-bit color LCD touchscreen, 320 x 240 pixels, 3.75" diagonal
Controls - 8 hard buttons for common commands Context-sensitive soft keys on display
Bezel colors - White, almond, bone, brown and black
IR repeater - Remote control IR signal pass-through
Recommended installation - Install at thermostat height of 59" Fits double-gang UL/CSA-approved 32 ci plastic wall box
Cable connection - CAT-5 110 punch-down terminal
Power requirement -12 VDC, 350 mA (supplied through CAT-5 cable)
Dimensions - Wall surface: 6" W x 5" H x 0.8" D (152 mm x 127 mm x 20 mm) Inside wall box: 3.6" W x 2.83" H x 1.55" D (91 mm x 71 mm x 39 mm)
Weight - 18.5 oz (524.5 g)
RNET® firmware versions required - CAV6.6 Rev. 3: 2.01.16 or higher CAV6.6 Rev. 4: 3.01.10 or higher CAM6.6: 1.01.05 or higher CAM AM/FM module: 1.01.01 or higher CAM XM module: 2.00.05 or higher ST2 Dual Tuner: 3.00.10 or higher ST2-XM chassis: 3.00.10 or higher ST2-XM XM module: 2.00.05 or higher SMS3 Media Server: 1.01.00 or higher
