Soundscape Product Listing
TRUAUDIO
In-Wall Speakers
In-Wall Speakers

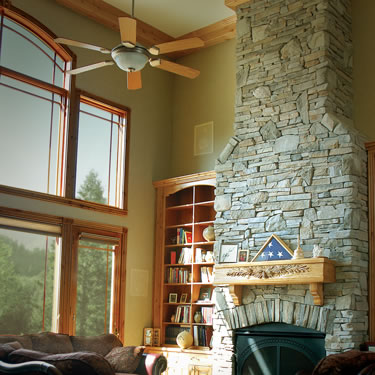

Rectangle or square speakers are most of the time referred to as “in-wall speakers”. This shape is usually put into walls (opposed to the ceiling) because they blend in with other “square” wall fixtures or décor such as: HVAC registers, switches, windows, pictures, etc.
In-wall speakers can be used for everything from background music to Home Theater depending on the specific installation. We offer a huge selection of these speakers that range in performance and price.
AV-83
Soundscape Price: $1,100/pair
Coming Soon!
- 3 way in-wall design
- Frame and grill can be painted to match rooms décor
- Ultra-High-grade crossover design and components
- 8" Wooven Carbon Fiber woofer provides deep bass for both audio and video
- Wooven Carbon Fiber midrange adds missing frequencies
- Titanium tweeter provides clean, crisp highs
- Adjustable tweeter and woofer controls
- Speaker Type: In-wall, 3 way
- Woofer: 8" Wooven Carbon Fiber
- Midrange: 2 1/2" Wooven Carbon Fiber
- Tweeter: 1" titanium, swivel
- Power: 5 - 175 watts
- Impedance: 4 or 8 ohm, switchable
- Frequency Response: 35 - 20k Hz.
- Sensitivity: 92 dB
- EQ Adjustments: Woofer & Tweeter +3, 0, -3
- Grill: Micromesh
- Finish dimensions: 16 1/2" H, 10 1/4" W, 3 7/8" D
- Cutout dimensions: 15 1/2" H, 9" W
WA-8
Soundscape Price: $600/pair
- 2 way in-wall design Frame and grill can be painted to match rooms décor
- High-grade crossover design and components
- Proprietary swivel tweeter plate more accurate high frequencies
- Aluminum woofer provides powerful bass
- Aluminum tweeter provides clean, crisp highs
- Adjustable tweeter and woofer controls
- Speaker Type: In-wall, 2 way
- Woofer: 8" aluminum
- Tweeter: 1" aluminum, swivel
- Power: 5 - 150 watts
- Impedance: 4 or 8 ohm, switchable
- Frequency Response: 37 - 20k Hz.
- Sensitivity: 92 dB
- EQ Adjustments: Tweeter +3, 0, -3
- Grill: Micromesh
- Finish dimensions: 14 3/4" H, 10 5/8" W, 3 1/2" D
- Cutout dimensions: 13 3/4" H, 9 1/2" W
WP-8
Soundscape Price: $450/pair
- 2 way in-wall design
- Frame and grill can be painted to match rooms décor
- High-grade crossover design and components
- 8" polypropylene woofer for added bass
- Good quality woofer and tweeter
- Proprietary swivel tweeter plate more accurate high frequencies
- Speaker Type: In-wall, 2 way
- Woofer: 8" polypropylene
- Tweeter: 1" silk, swivel
- Power: 5 - 125 watts
- Impedance: 8 ohm
- Frequency Response: 41 - 20k Hz.
- Sensitivity: 90 dB Grill: Micromesh
- Finish dimensions: 14 3/4" H, 10 5/8" W, 3 1/2" D
- Cutout dimensions: 13 3/4" H, 9 1/2" W
AV-63
Soundscape Price: $800/pair
Coming Soon!
- 3 way in-wall design
- Frame and grill can be painted to match rooms décor
- Ultra-High-grade crossover design and components
- 6.5" Wooven Carbon Fiber woofer provides deep bass for both audio and video
- Wooven Carbon Fiber midrange adds missing frequencies
- Titanium tweeter provides clean, crisp highs
- Adjustable tweeter and woofer controls
- Speaker Type: In-wall, 3 way
- Woofer:6.5" Wooven Carbon Fiber
- Midrange: 2 1/2" Wooven Carbon Fiber
- Tweeter: 1" titanium, swivel
- Power: 5 - 150 watts
- Impedance: 4 or 8 ohm, switchable
- Frequency Response: 45 - 20k Hz.
- Sensitivity: 92 dB
- EQ Adjustments: Woofer & Tweeter +3, 0, -3
- Grill: Micromesh
- Finish dimensions: 14 5/8" H, 91/8" W, 3 5/8" D
- Cutout dimensions: 13 1/2" H, 8" W
WA-6
Soundscape Price: $550/pair
- 2 way in-wall design Frame and grill can be painted to match rooms décor
- High-grade crossover design and components
- Proprietary swivel tweeter plate more accurate high frequencies
- Aluminum woofer provides deep bass from a small speaker
- Aluminum tweeter provides clean, crisp highs
- Adjustable tweeter and woofer controls
- Speaker Type: In-wall, 2 way
- Woofer: 6 1/2" aluminum
- Tweeter: 1" aluminum, swivel
- Power: 5 - 125 watts
- Impedance: 4 or 8 ohm, switchable
- Frequency Response: 43 - 20k Hz.
- Sensitivity: 92 dB
- EQ Adjustments: Tweeter +3, 0, -3
- Grill: Micromesh
- Finish dimensions: 12 3/4" H, 9 1/8" W, 3 1/8" D
- Cutout dimensions: 11 5/8" H, 8" W
WP-6
Soundscape Price: $350/pair
- 2 way in-wall design Frame and grill can be painted to match rooms décor
- High-grade crossover design and components
- Good quality woofer and tweeter
- Proprietary swivel tweeter plate more accurate high frequencies
- Speaker Type: In-wall, 2 way
- Woofer: 6 1/2" polypropylene
- Tweeter: 1" silk, swivel
- Power: 5 - 100 watts
- Impedance: 8 ohm
- Frequency Response: 50 - 20k Hz.
- Sensitivity: 90 dB
- Grill: Micromesh
- Finish dimensions: 12 3/4" H, 9 1/8" W, 3 1/8" D
- Cutout dimensions: 11 5/8" H, 8" W
LW-6
Soundscape Price: $170/pair
- 2 way in-wall design Frame and grill can be painted to match rooms décor
- Good quality product for a tight budget
- Good quality woofer and tweeter
- Proprietary swivel tweeter plate more accurate high frequencies
- Speaker Type: In-wall, 2 way
- Woofer: 6 1/2" polypropylene
- Tweeter: 3/4" mylar
- Power: 5 - 60 watts
- Impedance: 8 ohm
- Frequency Response: 55 - 20k Hz.
- Sensitivity: 88 dB
- Grill: Micromesh Finish dimensions: 12" H, 8 5/8" W, 3" D
- Cutout dimensions: 11" H, 7 1/2" W
WA-5
Soundscape Price: $330/pair
- 2 way in-wall design Frame and grill can be painted to match rooms décor
- High-grade crossover design and components Small compact size to fit in tight spaces
- Aluminum material which offers great high and lows
- Proprietary swivel tweeter plate more accurate high frequencies
- Speaker Type: In-wall, 2 way
- Woofer: 5 1/4" aluminum
- Tweeter: 3/4" aluminum, swivel
- Power: 5 - 75 watts
- Impedance: 8 ohm
- Frequency Response: 60 - 20k Hz.
- Sensitivity: 91 dB
- EQ Adjustments: Tweeter +3, 0, -3
- Grill: Micromesh
- Finish dimensions: 11 1/4" H, 7 3/4" W, 3" D
- Cutout dimensions: 10 1/8" H, 6 3/4" W
WP-5
Soundscape Price: $230/pair
- 2 way in-wall design
- Frame and grill can be painted to match rooms décor
- High-grade crossover design and components
- Small compact size to fit in tight spaces
- Proprietary swivel tweeter plate more accurate high frequencies
- Speaker Type: In-wall, 2 way
- Woofer: 5 1/4" polypropylene
- Tweeter: 3/4" silk, swivel
- Power: 5 - 55 watts
- Impedance: 8 ohm
- Frequency Response: 65 - 20k Hz.
- Sensitivity: 90 dB
- Grill: Micromesh
- Finish dimensions: 11 1/4" H, 7 3/4" W, 3" D
- Cutout dimensions: 10 1/8" H, 6 3/4" W
Speaker Accessories
All Rough-in Rings are $15.00 each
Back Boxes for 6 /12" or 8" Ceiling Speakers are $22.00 each
MDF Enclosures for In-wall speakers are $60.00 each
MDF Enclosures for SUB-88 are $80.00 each
Acoustic Foam for in-wall speakers are $60/pair
