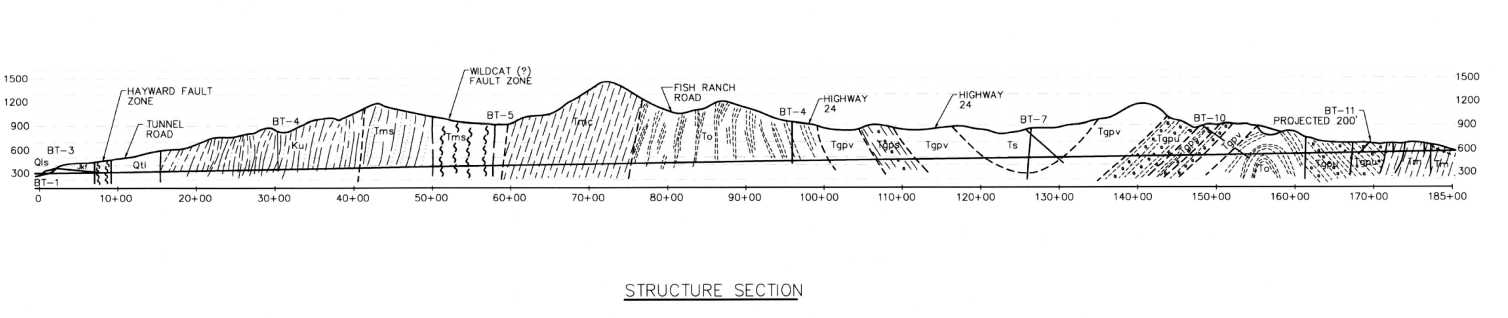

Figure 11. Geologic profile along the 3.1-mile long Berkeley Hills Tunnel, which intercepts the Hayward fault about 700 feet in from the west portal. The tunnel was not designed for tectonic offset, but tracks have been continuously adjusted through the fault zone.
