The Chili pepper

Exciting New Water Products

The Chili Pepper is a small, powerful, hot water pump that mounts under your sink. At the touch of a button, it allows your hot water to be pumped rapidly from your water heater to your sink or shower, without running any water down the drain! When you turn on your faucet you've got instant hot water! Eliminating that wasted water saves  thousands of gallons of water every year—a typical family of 4 can save more than 12,000 gallons/year! And by eliminating running water down the drain, you help to reduce the amount of sewage that needs to be treated as well. And the Chili Pepper uses less than $2.00 per year in electricity to operate. So be nice to the environment and reduce your carbon footprint!

ARIDTEC ATMOSPHERIC WATER  GENERATOR

AridTec is an innovative atmospheric water generation (AWG) appliance that makes water from the air we breathe! Free standing at 13"wX16"dX48"h, the dimensions makes it ideal for any home or office and over time offer significant savings other water systems. The AridTec AWG is simple to use, just plug into a standard 110v outlet and it begins harvesting water from the air. There is no plumbing or wiring needed. It dispenses both hot and cold water and produces between 2 and 7 gallons of water per day, depending on the temperature and the humidity level. (The higher the temperature and humidity, the unit produces more water—faster.)

While there's no upper limit threshold, the ideal operating condition is 80°F and 60% relative humidity - 7 gallons per 24 hour period vs. the lowest level we deem economical for the unit to operate is 64°F and 30% relative humidity - 2 gallons per 24 hour period.) The air is initially filtered through an anti-bacterial, micro-fiber air filter, then condensed to liquid form and ran through our industry leading 4 stage filtration process that re-mineralizes the water to 7.1 ph neutral. Finally, the AridTec water stored in the 3.1 gallon stainless steel storage container is periodically ran through a UV sterilizer to ensure elimination of all bacteria and viruses. Be in total control of your drinking water! AridTec can help you save money and energy and reduce pollution by eliminating the need for bottled water systems. Being green is not only vogue; it’s a responsible action on your part to help future generations. Go beyond green! Help conserve one of the Earth's most precious natural resources… begin creating your own water with the Energy Star rated Sano; providing fresh, clean, safe, pure drinking water for your family/employees. The Sano is delivered to you complete; with everything you need to begin harvesting water and has a 1 year warranty for your protection. 1 year warranty on the Sano, 3 year warranty on the compressor.

Aridtec also manufactures commercial water producing machines that can be easily deployed to specialized sites where access to water is hard to come by or cannot be supplied by more traditional sources. The capacity of water created by the commercial units ranges from 39 to 1400 gallons/day. These machines  all over the world supplying water everywhere from remote resorts to in disaster-stricken front lines and battlefields. Clearly the water of the future is already here.

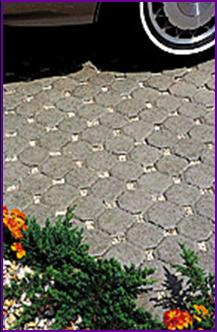

 Permeable pavers

With the advent of the EPA’s mandate to control storm water runoff through it's National Pollutant Discharge Elimination System (NPDES) in the early 90's, the path was paved for the growth of permeable pavements. Permeable pavers can be designed to accommodate a wide variety of storm water management objectives. They provide runoff reductions of up to 100% depending on project design parameters. The pavers also maximize groundwater recharge and/or retention for storage of rainwater for possible re-use for irrigation or other non-potable uses. They reduce nonpoint source pollutants in storm water, thereby mitigating impact on surrounding surface waters, and may lessen or eliminate downstream flooding and stream bank erosion.  Permeable pavers minimize impacts and stress on existing storm sewer systems through reduced peak discharges. They allow for better land-use planning by providing a much more efficient use of available land for greater economic value, especially in high-density, urban areas. Additionally, they can decrease projects cost by reducing or eliminating drainage and retention/detention systems. They can also reduce the cost of compliance with water requirements while lowering utility fees.

Rainwater  Filters

Rainwater Products

Storage Tanks

Graywater Products

Ap Rainwater Harvesting & Graywater GARDEns

Providing Innovative Green Solutions For All Your Water Needs

Specialized rainwater filter is designed to clean polluted storm water from entering creeks, rivers, streams and lakes. The ready-to-install Hydrosystem 1000 is quickly and safely installed on site and also works for roof areas up to 1000m². The cleaned water has such an excellent water quality that it can be discharged directly into soakaways, surface waters and the wider environment. The filter function is an up-flow process which allows for a minimal height difference between the inlet and outlet. In the filter shaft the rainwater is cleaned by basic operation of the following processes: Sedimentation, Adsorption, Filtration, and Chemical Precipitation. Incoming rainwater is led down to the basal section of the filter shaft. Above the separation chamber are 4 filter elements, occupying the full shaft width such that all water must flow up through the filter. The siltation of this filter is slow due to the upwards flow, and the fact that the filter is below the water level. The filter is easily exchanged and under normal conditions the filter will last for 2 years, maintenance free.



 HydrosYSTEM 1000 Roof

    HYDRODYNAMIC SEPARATORS



This specialized rainwater filter is suitable for cleaning heavily contaminated waters from trafficked areas (i.e. over 5000 vehicles per day) up to 500m² and is designed for installation within standard manhole shafts, 1000mm diameter. The cleaned water has such an excellent water quality that it can be discharged directly into soakaways, surface waters and the wider environment. The filter function is an up-flow process and this allows for a design with a minimal height difference between the inlet and outlet. A hydrodynamic separator built in the base section promotes particulate sedimentation. The water is led into this separator tangentially and generates a radial flow pattern. Particles settle into the silt trap located below the separation chamber. . The siltation of this filter is slow due to the upwards flow, and the fact that the filter is below the water level. The filter is easily exchanged and under normal conditions will last for 2 years, maintenance free.



 HydrosYSTEM 1000 heavy traffic

This specialized rainwater filter is suitable for cleaning water from metal roof areas up to 500m² for installation within standard manhole shafts, 1000mm diameter. The cleaned water has such an excellent water quality that it can be discharged directly into soakaways, surface waters and the wider environment. The filter function is an up-flow process and this allows for a design with a minimal height difference between the inlet and outlet. The siltation of this filter is slow due to the upwards flow, and the fact that the filter is below the water level. The filter is easily exchanged and under normal conditions the filter will last for 2 years, maintenance free.



 HydrosYSTEM 1000 METAL ROOF

This specialized rainwater filter is suitable for cleaning water from metal roof areas up to 500m² for installation within standard manhole shafts, 1000mm diameter. The cleaned water has such an excellent water quality that it can be discharged directly into soakaways, surface waters and the wider environment. The filter function is an up-flow process and this allows for a design with a minimal height difference between the inlet and outlet. The siltation of this filter is slow due to the upwards flow, and the fact that the filter is below the water level. The filter is easily exchanged and under normal conditions the filter will last for 2 years, maintenance free.



 HydrosYSTEM 400 METAL ROOF

 Dual-vortex hydrodynamic separator



The Dual-Vortex Hydrodynamic Separator provides enhanced gravity separation of suspended stormwater pollutants in a compact configuration. The unit uses two independent cylindrical separators: Low flow is diverted by the inlet to the first separator, while moderate flow begins to overflow the first control weir and enter the second separator. Settled particles collect in the bottom storage area of the unit which is isolated from the fluid outlet, minimizing resuspension. Floating debris and oils are temporarily held at the top of each separator and deposited in the upper storage area by peak storm events. Once the unit treatment capacity is exceeded, excess flow breaches a second control weir at the inlet and passes through the bypass pipe without decreasing the treatment flow or re-entraining captured pollutants. It is designed to effect greater than 80% removal of TSS reflective of typical urban runoff. Units are sized to treat storm water at the design removal efficiency. Constructed of durable stainless steel and fiberglass components installed in a reinforced concrete structure. all internal parts may be removed in the field through a 48” self-lifting access lid for easy, complete cleaning access. Made in the USA!



The Cudo™ Storm water Management Systems offers a new approach to underground stormwater storage, infiltration, treatment, rainwater harvesting, and other storm water management needs. The product incorporate a unique arched design that adds structural integrity increased water storage, and enhanced inspection and maintenance access. The Cudo system sets a new standard for storm water treatment systems through its capability of incorporating built-in gross pollutant filters or media filter devices and integral metered outlet devices, eliminating the need for separate pre-treatment systems or outlet/flow control structures. The large void spaces create an ideal use for the Cudo as an integral part of a bioretention system as it replaces drain pipe and aggregate with a highly porous mix, enhancing the opportunity for rainwater harvesting and passive or active irrigation. The CUDO is made in the USA using injection molded, recycled, polypropylene plastic. Potential LEED® NC credits include Sustainable Sites (6.1,6.2), Materials & Reuse (4.1,4.2, 5.1,5.2 in CA, AZ, NV, UT) and Water Efficiency (1.1,1.2,3.1,3.2). Cudos may be installed as a single-level system, or connected vertically, to form a CUDO stack, increasing storage capacity. Formed stacks can be easily moved about a construction site. For each application, either a filter fabric or plastic liner is placed beneath and around the CUDO modules, forming an envelope around the entire system. Geo-grid or other structural enhancement may be incorporated into the Cudo installation, depending on the loading requirements. For installations with severe loading conditions due to shallow or deep burial depths, high water tables, and further enhanced maintenance access, Cudo water storage systems are also available in precast concrete designs to address the needs of such special site conditions.



 CUDO stormwater mamangement system

    STORMWATER MANAGEMENT SYSTEMS



    INNOVATIVE WATER TECHNOLOGIES



 Grasspave2 is designed to store and collect rain, provide erosion and sediment control, efficiently convey and deliver water, and protect natural areas.And you can build living walls with i to too. Porous paving allows rainwater to percolate through the pavement’s surface and back into the ground (infiltrating), where the water is cleaned and returned to ground water supplies. The Grasspave2 system is based on a simple, but impressive technology—a series of rings (cylinders) connected on a flexible grid system.





The cylinders are engineered to withstand significant structural loads and the grid provides stability, flexibility, and continuity for large areas. The grid system also has the unique ability to be rolled up for easy shipping, handling and installation. This engineered design allows for any street-legal vehicle (and sometimes larger) to park or drive on our Grasspave2 surfaces. In fact, even the Pentagon agrees; Grasspave2 was selected  for its helicopter landing pads. As a homeowner, you can be sure Grasspave2 can deliver a beautiful, environmentally-friendly surface and add a unique look.

 GRASSPAVE 2
